Belden 1618A 0101000 CATV Video, RG11, 14 AWG BCCS, Quad Shield , Waterblocked - Black, 1,000 ft Reel

$607.99
SKU:
1618A 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1618A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1618A 0101000 CATV Video, RG11, 14 AWG BCCS, Quad Shield , Waterblocked

Series 11, 14 AWG solid .064" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond® IV quad shield (Foil + 60% Braid + Foil + 40% Braid), polyethylene jacket.

Ordering Details

  • Manufacturer Part Number: 1618A 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825119296

Supplied as one 1,000 ft Reel.

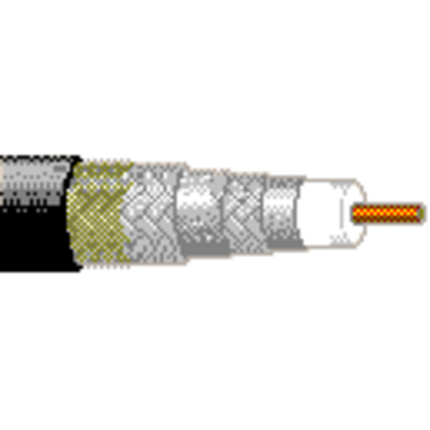

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • RG Type: 11
  • Series Type: 11
  • Size: 14; Stranding: Solid; Nom. Diameter: 0.064 in; Material: BCCS - Bare Copper Covered Steel
  • Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.28 in (7.1 mm)
  • Insulation Table Notes: Gas Injected
  • Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
  • Layer: 2; Outer Shield Type: Braid; Material: Aluminum; Coverage: 60%
  • Layer: 3; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
  • Layer: 4; Outer Shield Type: Braid; Material: Aluminum; Coverage: 40%
  • Outer Shield Table Notes: CoreGuard®
  • Material: PE - Polyethylene; Nom. Diameter: 0.407 in

Electrical Characteristics

  • Frequency: 5 - 1000 MHz; Min. Structural Return Loss: 20 dB
  • Max. Attenuation: 0.38 dB/100ft
  • Max. Attenuation: 0.96 dB/100ft
  • Max. Attenuation: 1.9 dB/100ft
  • Max. Attenuation: 2.13 dB/100ft
  • Max. Attenuation: 2.25 dB/100ft
  • Max. Attenuation: 2.42 dB/100ft
  • Max. Attenuation: 2.6 dB/100ft
  • Max. Attenuation: 2.75 dB/100ft
  • Max. Attenuation: 3.04 dB/100ft
  • Max. Attenuation: 3.65 dB/100ft
  • Max. Attenuation: 4.06 dB/100ft
  • Max. Attenuation: 4.35 dB/100ft
  • Nom. Conductor DCR: 11 Ohm/1000ft (36 Ohm/km); Nom. Outer Shield DCR: 3 Ohm/1000ft (9.8 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.2 pF/ft (53.1 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 83%
  • Voltage Rating: 300 V RMS

Mechanical Characteristics

  • Operating: -55°C To +80°C
  • Max. Pull Tension: 308 lbs (140 kg)
  • Bulk Cable Weight: 52 lbs/1000ft (77 kg/km)

Standards and Compliance

  • Environmental Suitability: Outdoor - Water Exposure, Indoor, Outdoor, Burial
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.390 Revision Date: 11-06-2026

Resources

Belden 1618A Product Information
