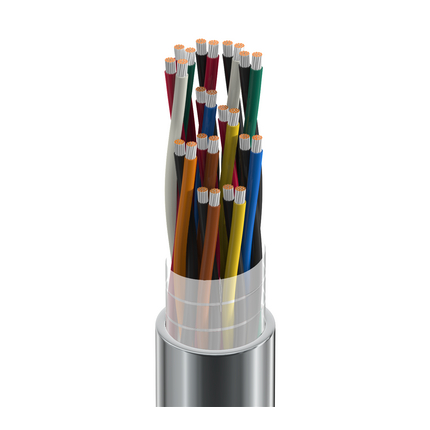

Belden 9741 0601000 Electronic, 12 Pr #18 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 12 Pair 18AWG (16x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 9741 0601000
- Color: Chrome
- UPC/EAN: 612825257998
- Manufacturer Footnote: C
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 12; Size: 18 AWG; Stranding: 16x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.013 in (0.33 mm); Nom. Insulation Diameter: 0.073 in (1.9 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown
- Separator: PP - Polypropylene Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.046 in (1.2 mm); Nom. Diameter: 0.600 in (15.2 mm)
- Overall Cable Diameter (Nominal): 0.600 in (15.2 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 2.6 Amps per Conductor at 25ºC
- UL Voltage Rating: 300 V (CMG), 300 V (AWM 2464)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 6.0 in (150 mm); Installation Min.: 6.0 in (150 mm)
- Max. Pull Tension: 499 lbs (226 kg)
- Bulk Cable Weight: 204 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.504 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
