Belden 9743 0601000 Electronic, 19 Pr #18 Str TC, PVC Ins, PVC Jkt, CMG - Chrome

$49,754.99
SKU:
9743 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Manufacturer Status:
Active
Product Family:
9743
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9743 0601000 Electronic, 19 Pr #18 Str TC, PVC Ins, PVC Jkt, CMG

Electronic, 19 Pair 18AWG (16x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 9743 0601000
  • Color: Chrome
  • UPC/EAN: 612825258032
  • Manufacturer Footnote: C

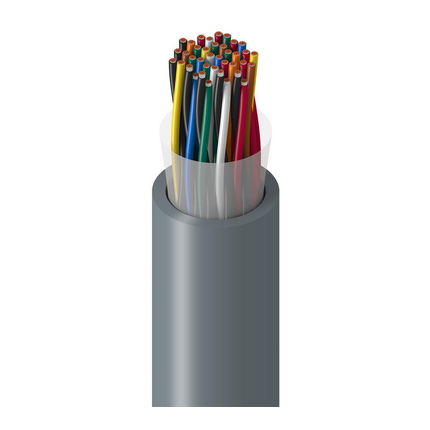

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 19; Size: 18 AWG; Stranding: 16x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.013 in (0.33 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown, Green & Orange, White & Blue
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.055 in (1.4 mm); Nom. Diameter: 0.721 in (18.3 mm)
  • Overall Cable Diameter (Nominal): 0.721 in (18.3 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 6.8 Ohm/1000ft (22 Ohm/km); Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 2.6 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

  • UL Temperature: 80°C (UL AWM 2464); Operating: -20°C to +80°C
  • Max. Pull Tension: 768 lbs (348 kg)
  • Bulk Cable Weight: 320 lbs/1000ft (480 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL1685 FT4 Loading
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.264 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9743 Product Information
