Description
Belden 9747 0601000 Electronic, 12 Pr #22 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 12 Pair 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 9747 0601000
- Color: Chrome
- UPC/EAN: 612825258155
- Manufacturer Footnote: C

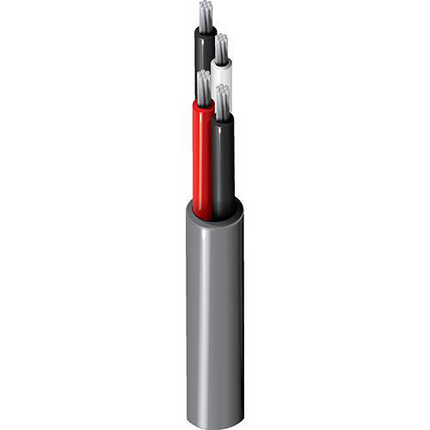

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 12; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.011 in (0.28 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.040 in (1.0 mm); Nom. Diameter: 0.425 in (10.8 mm)
- Overall Cable Diameter (Nominal): 0.425 in (10.8 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 14.7 Ohm/1000ft (48.2 Ohm/km); Nom. Capacitance Cond-to-Cond: 25.5 pF/ft (83.7 pF/m); Max. Current: 1.4 Amps per Conductor at 20ºC
- UL Voltage Rating: 300 V (CMG), 150 V (UL AWM 2576)
Mechanical Characteristics
- UL Temperature: 80°C (UL AWM 2576); Operating: -20°C to +80°C
- Max. Pull Tension: 109 lbs (49.4 kg)
- Bulk Cable Weight: 100 lbs/1000ft (150 kg/km)
Standards and Compliance
- Flammability / Reaction to Fire: UL1685 FT4 Loading
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AMW 2576
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.358 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
