Belden 9659 0101000 Analog Video, RG59, #22 Str BC, 95% BC Braid, PVC Jacket, CMX - Black, 1,000 ft Reel

$1,623.99
SKU:
9659 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9659
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

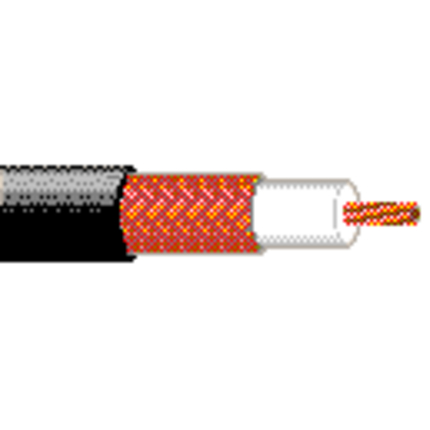

Belden 9659 0101000 Analog Video, RG59, #22 Str BC, 95% BC Braid, PVC Jacket, CMX

22 AWG stranded (7x30) .030" bare copper conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9659 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825356028

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • RG Type: 59
  • Series Type: 59
  • Size: 22; Stranding: 7x30; Nom. Diameter: 0.03 in; Material: BC - Bare Copper
  • Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.146 in (3.71 mm)
  • Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
  • Material: PVC - Polyvinyl Chloride (Non-Contaminating); Nom. Diameter: 0.242 in

Electrical Characteristics

  • Frequency: 5-450 MHz; Min. Return Loss: 23 dB
  • Frequency: 1 MHz; Nom. Attenuation: 0.3 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 0.9 dB/100ft
  • Frequency: 50 MHz; Nom. Attenuation: 2.1 dB/100ft
  • Frequency: 100 MHz; Nom. Attenuation: 3 dB/100ft
  • Frequency: 200 MHz; Nom. Attenuation: 4.5 dB/100ft
  • Frequency: 400 MHz; Nom. Attenuation: 6.6 dB/100ft
  • Frequency: 700 MHz; Nom. Attenuation: 8.9 dB/100ft
  • Frequency: 900 MHz; Nom. Attenuation: 10.1 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 10.9 dB/100ft
  • Nom. Conductor DCR: 15 Ohm/1000ft (49 Ohm/km); Nom. Outer Shield DCR: 2.6 Ohm/1000ft (8.5 Ohm/km); Nom. Capacitance Cond-to-Shield: 17.3 pF/ft (56.8 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 78%
  • UL Voltage Rating: 150 V RMS; Voltage Rating: 300 V RMS

Mechanical Characteristics

  • Operating: -40°C To +80°C
  • Max. Pull Tension: 65 lbs (29 kg)
  • Bulk Cable Weight: 35 lbs/1000ft (52 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor
  • Flammability / Reaction to Fire: VW-1
  • NEC / UL Compliance: CMX
  • AWM Compliance: AWM 1354 (30 V 60°C)
  • CEC / C(UL) Compliance: CMX
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: For CCTV Applications.

History

  • Update and Revision: Revision Number: 0.335 Revision Date: 11-06-2026

Resources

Belden 9659 Product Information
