Belden 9274 0101000 Analog Video, RG59, #20 Solid BCCS, 95% BC Braid, PVC Jacket, CM
20 AWG solid .032" bare copper-covered steel conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.
Ordering Details
- Manufacturer Part Number: 9274 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825357667
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

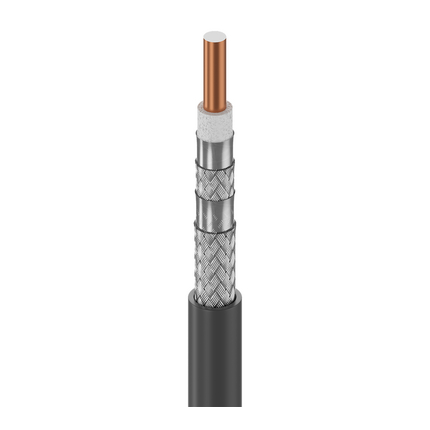

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Manufacturer Status: Discontinued
Product Life Cycle
- Life Cycle: Discontinued - the product is no longer manufactured
- Discontinuation Announcement Date: 1999-02-19
Construction Details
- RG Type: 59
- Series Type: 59
- Size: 20; Stranding: Solid; Nom. Diameter: 0.032 in; Material: BCCS - Bare Copper Covered Steel
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.143 in (3.63 mm)
- Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.235 in
Electrical Characteristics
- Frequency: 5-450 MHz; Min. Structural Return Loss: 23 dB
- Frequency: 1 MHz; Nom. Attenuation: 0.6 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 1 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 2.1 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 3 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 4.5 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 6.6 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 8.9 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 10.1 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 10.9 dB/100ft
- Nom. Conductor DCR: 44.5 Ohm/1000ft (146 Ohm/km); Nom. Outer Shield DCR: 3.5 Ohm/1000ft (11 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.3 pF/ft (53.5 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 82%
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -40°C To +80°C
- Max. Pull Tension: 86 lbs (39 kg)
- Bulk Cable Weight: 31 lbs/1000ft (46 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor
- Flammability / Reaction to Fire: UL1685 UL Loading
- NEC / UL Compliance: CM
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.343 Revision Date: 07-30-2026
- Footnote: C - CRATE REEL PUT-UP.
