Belden 8241B 0101000 Analog Video, RG59, #23 Solid BC, 95% BC Braid, PVC Jacket, CM - Black, 1,000 ft Reel

$867.99
SKU:
8241B 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8241B
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

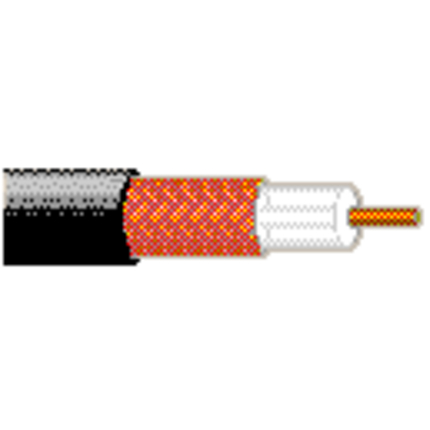

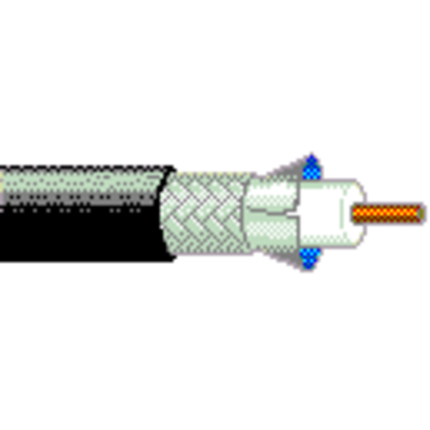

Belden 8241B 0101000 Analog Video, RG59, #23 Solid BC, 95% BC Braid, PVC Jacket, CM

23 AWG solid .023" bare copper conductor, polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Ordering Details

  • Manufacturer Part Number: 8241B 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825355960
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • RG Type: 59
  • Size: 23; Stranding: Solid; Nom. Diameter: 0.023 in; Material: BC - Bare Copper
  • Material: PE - Polyethylene; Nom. Insulation Diameter: 0.146 in (3.71 mm)
  • Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.242 in

Electrical Characteristics

  • Frequency: 1 MHz; Nom. Attenuation: 0.4 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 1.1 dB/100ft
  • Frequency: 50 MHz; Nom. Attenuation: 2.4 dB/100ft
  • Frequency: 100 MHz; Nom. Attenuation: 3.4 dB/100ft
  • Frequency: 200 MHz; Nom. Attenuation: 4.9 dB/100ft
  • Frequency: 400 MHz; Nom. Attenuation: 7 dB/100ft
  • Frequency: 700 MHz; Nom. Attenuation: 9.7 dB/100ft
  • Frequency: 900 MHz; Nom. Attenuation: 11.1 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 12 dB/100ft
  • Frequency: 50 MHz; Max. Power Rating: 470 W
  • Frequency: 100 MHz; Max. Power Rating: 310 W
  • Frequency: 300 MHz; Max. Power Rating: 160 W
  • Frequency: 500 MHz; Max. Power Rating: 115 W
  • Frequency: 1,000 MHz; Max. Power Rating: 76 W
  • Nom. Conductor DCR: 20.4 Ohm/1000ft (66.9 Ohm/km); Nom. Outer Shield DCR: 2.9 Ohm/1000ft (9.5 Ohm/km); Nom. Capacitance Cond-to-Shield: 20.5 pF/ft (67.3 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 66%
  • UL Voltage Rating: 300 V RMS; Voltage Rating: 1700 V RMS
  • Electrical Characteristics Notes: 30 V RMS (UL AWM Style 1354)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C To +80°C
  • Max. Pull Tension: 62 lbs (28 kg)
  • Bulk Cable Weight: 34 lbs/1000ft (51 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Outdoor
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: CM
  • AWM Compliance: AWM 1354 (30 V 80°C)
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: RG-59/U Type standard Analog Video Coax. CM Rated Version of 8241.

History

  • Update and Revision: Revision Number: 0.385 Revision Date: 11-06-2026
  • Footnote: C - CRATE REEL PUT-UP.
