Belden 9451DP 00910000 Line Level Audio Cable, 2 Parallel Pr #22 Str TC, O/A Foil, Flamarrest® Jkt, CMP
Line Level Audio Cable, 2 Parallel Pair 22 AWG (7 x 30) Tinned Copper, FEP insulation, Overall Beldfoil® Shield, Flamarrest® Jacket, CMP
Ordering Details
- Manufacturer Part Number: 9451DP 00910000
- Color: White
- Length: 10,000 ft
- Put-Up: Reel
- UPC/EAN: 612825377030
Supplied as one 10,000 ft Reel.

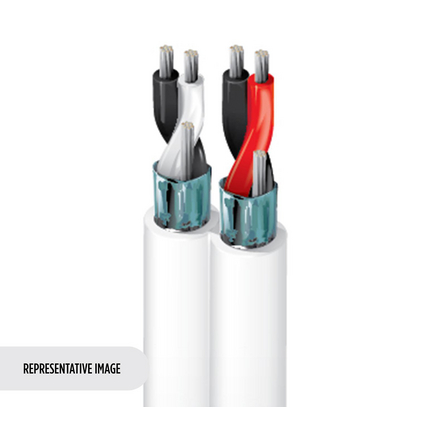

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Line level audio; Low voltage analog signals and control
Construction Details
- Element: Pair(s); No. of Elements: 2; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.044 in (1.1 mm); Color Code: Black & Red, Black & White
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.127 in (3.23 mm)
- Outer Jacket1 Table Notes: Jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.
- Overall Cable Diameter (Nominal): 0.269 in (6.83 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 67 pF/ft (220 pF/m); Nom. Characteristic Impedence: 42 Ohm; Nom. Delay: 1.47 ns/ft; Nom. Inductance: 0.15 µH/ft (0.49 µH/m); Nom. Velocity of Prop.: 69%; Max. Current: 2.8 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 13.93 Ohm/1000ft (45.70 Ohm/km)
- UL Voltage Rating: 300 V (CMP)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +75°C
- Stationary Min.: 1.3 in (33 mm); Installation Min.: 1.3 in (33 mm)
- Max. Pull Tension: 45.5 lbs (20.6 kg)
- Bulk Cable Weight: 24 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262 (UL910), FT6
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 9451D
History
- Update and Revision: Revision Number: 0.484 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
