Belden 9451P 0095000 Line Level Audio Cable, 1 Pr #22 Str TC, O/A Foil, Flamarrest® Jkt, CMP

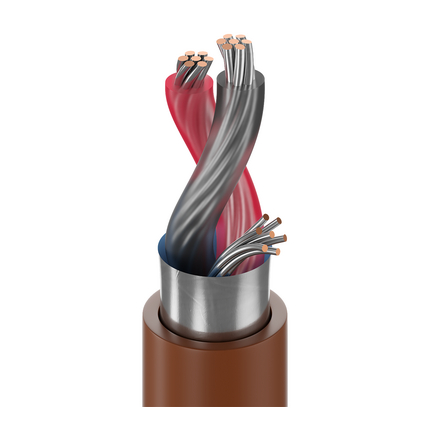

Line Level Audio Cable, 1 Pair 22 AWG (7 x 30) Tinned Copper, FEP insulation, Overall Beldfoil® Shield, Flamarrest® Jacket, CMP
Ordering Details
- Manufacturer Part Number: 9451P 0095000
- Color: White
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825253020
- Manufacturer Footnote: C
Supplied as one 5,000 ft Reel.
Product Overview
- Suitable Applications: Line level audio; Low voltage analog signals and control
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.044 in (1.1 mm); Color Code: Black & Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC; Notes: Jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.127 in (3.23 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft (59.7 Ohm/km); Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 67 pF/ft (220 pF/m); Nom. Delay: 1.47 ns/ft; Nom. Inductance: 0.15 µH/ft (0.49 µH/m); Nom. Velocity of Prop.: 69%; Max. Current: 4.4 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 13.93 Ohm/1000ft (45.70 Ohm/km)
- UL Voltage Rating: 300 V (CMP)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +75°C
- Stationary Min.: 1.3 in (33 mm); Installation Min.: 1.3 in (33 mm)
- Max. Pull Tension: 27 lbs (12 kg)
- Bulk Cable Weight: 14 lbs/1000ft (21 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262 (UL910), FT6, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 9451
History
- Update and Revision: Revision Number: 0.678 Revision Date: 12-18-2025
- Footnote: C - CRATE REEL PUT-UP.
