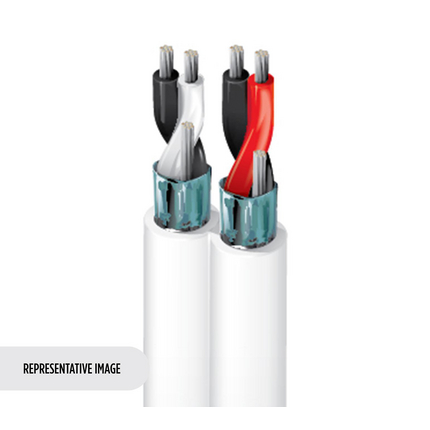

Belden 9451DP 009500 Line Level Audio Cable, 2 Parallel Pr #22 Str TC, O/A Foil, Flamarrest® Jkt, CMP - White, 500 ft Reel

$1,071.99
SKU:
9451DP 009500
Shipping:
Calculated at Checkout
Color:
White
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9451DP
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9451DP 009500 Line Level Audio Cable, 2 Parallel Pr #22 Str TC, O/A Foil, Flamarrest® Jkt, CMP

Line Level Audio Cable, 2 Parallel Pair 22 AWG (7 x 30) Tinned Copper, FEP insulation, Overall Beldfoil® Shield, Flamarrest® Jacket, CMP

Ordering Details

  • Manufacturer Part Number: 9451DP 009500
  • Color: White
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825353249

Supplied as one 500 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Line level audio; Low voltage analog signals and control

Construction Details

  • Element: Pair(s); No. of Elements: 2; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.044 in (1.1 mm); Color Code: Black & Red, Black & White
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.127 in (3.23 mm)
  • Outer Jacket1 Table Notes: Jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.
  • Overall Cable Diameter (Nominal): 0.269 in (6.83 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 67 pF/ft (220 pF/m); Nom. Characteristic Impedence: 42 Ohm; Nom. Delay: 1.47 ns/ft; Nom. Inductance: 0.15 µH/ft (0.49 µH/m); Nom. Velocity of Prop.: 69%; Max. Current: 2.8 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 13.93 Ohm/1000ft (45.70 Ohm/km)
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -20°C to +75°C
  • Stationary Min.: 1.3 in (33 mm); Installation Min.: 1.3 in (33 mm)
  • Max. Pull Tension: 45.5 lbs (20.6 kg)
  • Bulk Cable Weight: 24 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262 (UL910), FT6
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 9451D

History

  • Update and Revision: Revision Number: 0.484 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
