Description
Belden 85103 3681000 Electronic, 3 C #16 Str TC, ETFE Ins, ETFE Jkt
High Temperature Electronic, 3 Conductor 16AWG (19x29) Tinned Copper, ETFE Insulation, ETFE Outer Jacket
Ordering Details
- Manufacturer Part Number: 85103 3681000
- Color: Clear, Transparent
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825210603
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

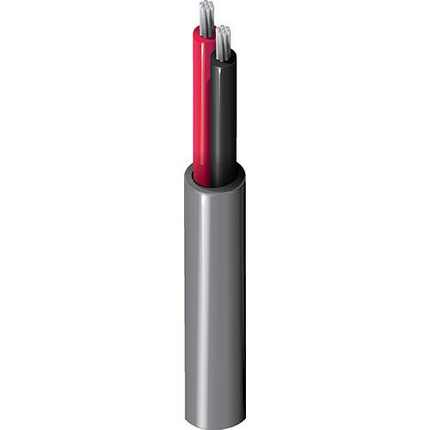

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); instrumentation
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
- Element: Conductor(s); Material: ETFE - Ethylene Tetrafluoroethylene; Nom. Thickness: 0.0135 in (0.343 mm); Nom. Insulation Diameter: 0.082 in (2.1 mm); Color Code: Black, White, Red
- Material: No Shield
- Material: ETFE - Ethylene Tetrafluoroethylene; Nom. Thickness: 0.019 in (0.48 mm); Nom. Diameter: 0.223 in
- Overall Cable Diameter (Nominal): 0.223 in.
Electrical Characteristics
- Nom. Conductor DCR: 4.76 Ohm/1000ft; Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 12 Amps per Conductor at 25ºC
- Voltage Rating: 300 V
Mechanical Characteristics
- Operating: -60°C To +150°C
- Stationary Min.: 2.23 in (56.6 mm); Installation Min.: 2.23 in
- Max. Pull Tension: 120 lbs (54 kg)
- Bulk Cable Weight: 40 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: VW-1
- CPR Compliance: CPR Euroclass: Eca
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Tefzel is a trademark of Dupont.
History
- Update and Revision: Revision Number: 0.378 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
