Belden 85102 3681000 Electronic, 2 C #16 Str TC, ETFE Ins, ETFE Jkt - Clear, Transparent, 1,000 ft Reel

$21,036.99
SKU:
85102 3681000
Shipping:
Calculated at Checkout
Color:
Clear, Transparent
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
85102
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 85102 3681000 Electronic, 2 C #16 Str TC, ETFE Ins, ETFE Jkt

High Temperature Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, ETFE Insulation, ETFE Outer Jacket

Ordering Details

  • Manufacturer Part Number: 85102 3681000
  • Color: Clear, Transparent
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825210580
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

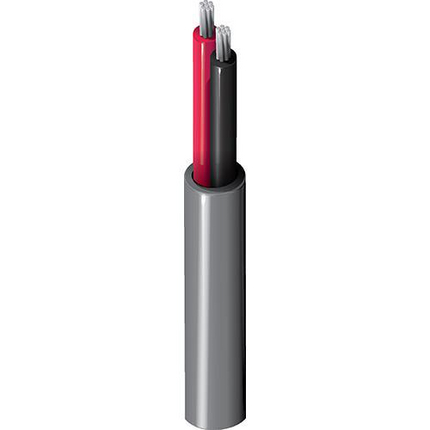

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); instrumentation

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 16; Stranding: 19x29; Material: TC - Tinned Copper
  • Material: ETFE - Ethylene Tetrafluoroethylene; Nom. Thickness: 0.0145 in (0.368 mm); Nom. Insulation Diameter: 0.082 in (2.1 mm); Color Code: Black, White
  • Material: ETFE - Ethylene Tetrafluoroethylene; Nom. Thickness: 0.019 in (0.48 mm); Nom. Diameter: 0.211 in (5.36 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 4.76 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 20 pF/ft (66 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 9.5 Amps per Conductor at 25ºC
  • Voltage Rating: 300 V

Mechanical Characteristics

  • Operating: -60°C To +150°C
  • Stationary Min.: 2.11 in (53.6 mm); Installation Min.: 2.11 in (53.6 mm)
  • Max. Pull Tension: 64.8 lbs (29.4 kg)
  • Bulk Cable Weight: 28 lbs/1000ft

Standards and Compliance

  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Tefzel is a trademark of Dupont.

History

  • Update and Revision: Revision Number: 0.481 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
