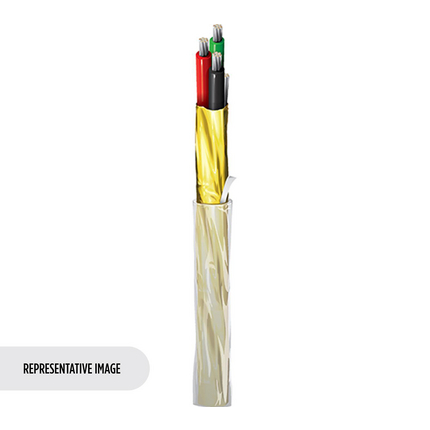

Belden 85231 3681000 Electronic, 2 C #16 Str TC, ETFE Ins, OS, ETFE Jkt - Clear, Transparent, 1,000 ft Reel

$23,197.99
SKU:
85231 3681000
Shipping:
Calculated at Checkout
Color:
Clear, Transparent
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
85231
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 85231 3681000 Electronic, 2 C #16 Str TC, ETFE Ins, OS, ETFE Jkt

High Temperature Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, ETFE Insulation, Overall Beldfoil® Shield, ETFE Outer Jacket

Ordering Details

  • Manufacturer Part Number: 85231 3681000
  • Color: Clear, Transparent
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825212089
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); instrumentation

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: ETFE - Ethylene Tetrafluoroethylene; Nom. Thickness: 0.014 in (0.36 mm); Nom. Insulation Diameter: 0.082 in (2.1 mm); Color Code: Black, Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Kapton®); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC
  • Material: ETFE - Ethylene Tetrafluoroethylene; Nom. Thickness: 0.020 in (0.51 mm); Nom. Diameter: 0.210 in (5.33 mm)
  • Overall Cable Diameter (Nominal): 0.210 in (5.33 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 4.45 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 44 pF/ft (140 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 79 pF/ft (260 pF/m); Nom. Inductance: 0.165 µH/ft (0.541 µH/m); Max. Current: 12 Amps per Conductor at 30ºC
  • Nom Outer Shield DCR: 4.98 Ohm/1000ft (16.3 Ohm/km)
  • Voltage Rating: 300 V

Mechanical Characteristics

  • Operating: -30°C to +150°C
  • Stationary Min.: 2.1 in (53 mm); Installation Min.: 2.1 in (53 mm)
  • Max. Pull Tension: 102.4 lbs (46.45 kg)
  • Bulk Cable Weight: 34 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL 1581 (VW-1)
  • CPR Compliance: CPR Euroclass: Eca
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.518 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
