Description
Belden 8408 001500 Microphone Cable, 2 Conductor 16 AWG, TC, CPE Jkt
Microphone Cable, 2 Conductor 16 AWG stranded (65x34) high-conductivity tinned copper conductors, EPDM rubber insulation, rayon braid, tinned copper braid shield (85% coverage), cotton wrap, CSPE - Chlorosulphonated Polyethylene heavy-duty jacket.
Ordering Details
- Manufacturer Part Number: 8408 001500
- Color: Brown
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825355274
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.

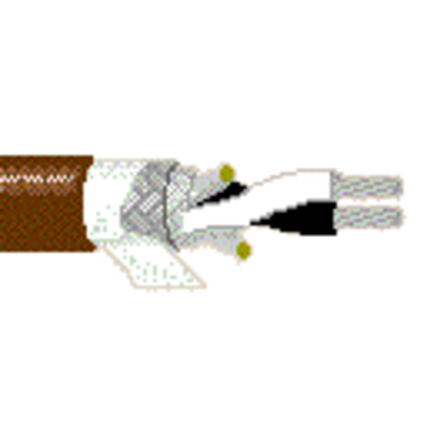

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Ruggedized, deployable microphone for studio or live performance; Balanced analog audio
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 16; Stranding: 65x34; Material: TC - Tinned Copper
- Element: Conductor(s); Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.037 in (0.94 mm); Nom. Insulation Diameter: 0.133 in (3.38 mm); Color Code: Black, White
- Shield Type: Braid; Material: Rayon®; Coverage: 85%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Separator: Cotton Serve; Material: CSPE - Chlorosulphonated Polyethylene; Nom. Thickness: 0.040 in (1.0 mm); Nom. Diameter: 0.38 in (9.7 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 4 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Nom. Characteristic Impedence: 59 Ohm; Max. Current: 5.6 Amps per Conductor at 25ºC (10°C Temperature Rise)
- Nom Outer Shield DCR: 2.4 Ohm/1000ft (7.9 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- Operating: -30°C To +60°C
- Max. Pull Tension: 150 lbs (68 kg)
- Bulk Cable Weight: 93 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: VW-1
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.467 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
