Description
Belden 8410 010500 Microphone Cable, 1 Conductor 25 AWG, TC
25 AWG stranded (7x33) composite copper conductor, EPDM rubber insulation, rayon braid + TC braid shield (80% coverage), cotton serve, cotton serve, EPDM rubber jacket.
Ordering Details
- Manufacturer Part Number: 8410 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825206309
Supplied as one 500 ft Reel.

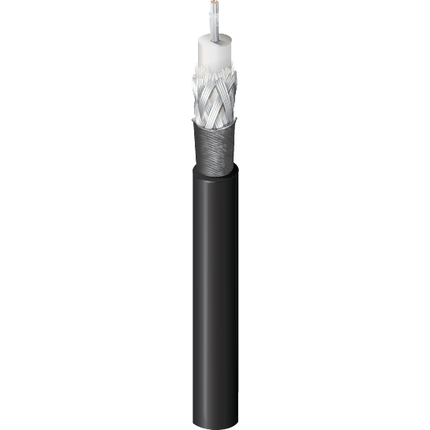

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Manufacturer Status: Discontinued
Product Overview
- Suitable Applications: Microphone, Musical Instrument
Product Life Cycle
- Life Cycle: Discontinued - the product is no longer manufactured
- Discontinuation Announcement Date: 1999-02-19
Construction Details
- No. of Elements: 1; Size: 25; Stranding: Stranded; Material: TC+TCCS - Tinned Copper (High Conductivity) + Tinned Copper Covered Steel (High Conductivity)
- Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.058 in (1.5 mm); Nom. Insulation Diameter: 0.154 in (3.91 mm)
- Shield Type: Braid; Material: Rayon®; Coverage: 80%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 80%
- Separator: Cotton Serve; Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.024 in (0.61 mm); Nom. Diameter: 0.245 in
Electrical Characteristics
- Nom. Conductor DCR: 45.1 Ohm/1000ft (148 Ohm/km); Nom. Capacitance Cond-to-Shield: 33 pF/ft (110 pF/m); Nom. Characteristic Impedence: 52 Ohm; Max. Current: 1.9 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 5.8 Ohm/1000ft (19 Ohm/km)
- Voltage Rating: 3000 V DC
Mechanical Characteristics
- Operating: -30°C To +60°C
- Max. Pull Tension: 60 lbs (27 kg)
- Bulk Cable Weight: 37 lbs/1000ft (55 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.370 Revision Date: 11-06-2026
