Belden 9394 0101000 Microphone Cable, 1 Conductor 20 AWG, TC - Black, 1,000 ft Reel

$2,103.99
SKU:
9394 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Discontinued
Product Family:
9394
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9394 0101000 Microphone Cable, 1 Conductor 20 AWG, TC

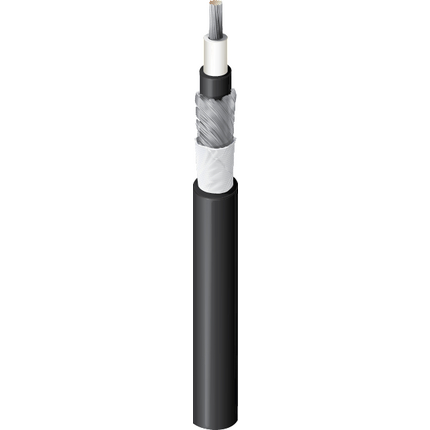

20 AWG stranded (27x34) high-conductivity TC conductor, EPDM rubber insulation, conductive textile (100%) plus TC spiral shields (95% coverage), paper tape, CPE jacket.

Ordering Details

  • Manufacturer Part Number: 9394 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825358749
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Manufacturer Status: Discontinued

Product Life Cycle

  • Life Cycle: Discontinued - the product is no longer manufactured
  • Discontinuation Announcement Date: 2002-04-29

Construction Details

  • Size: 20; Stranding: 27x34; Nom. Diameter: 0.037 in; Material: TC - Tinned Copper (High Conductivity)
  • Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Insulation Diameter: 0.097 in (2.5 mm)
  • Layer: 1; Outer Shield Type: Spiral Serve / Screen; Material: Textile (Conductive); Coverage: 100%
  • Layer: 2; Outer Shield Type: Spiral Serve / Screen; Material: Tinned Copper (TC); Coverage: 95%
  • Layer: 3; Outer Shield Type: Tape; Coverage: 100%
  • Material: CPE - Chlorinated Polyethylene; Nom. Diameter: 0.19 in

Electrical Characteristics

  • Nom. Conductor DCR: 10.2 Ohm/1000ft (33.5 Ohm/km); Nom. Outer Shield DCR: 8.7 Ohm/1000ft (29 Ohm/km); Nom. Capacitance Cond-to-Shield: 55 pF/ft (180 pF/m); Nom. Characteristic Impedance: 34 Ohm; Max. Current: 4 Amps per Conductor at 25ºC (10°C Temperature Rise)
  • Voltage Rating: 300 V RMS
  • Electrical Characteristics Notes: Insulation Resistance: 500 Megohms/1000 ft. @ 500 V DC

Mechanical Characteristics

  • Operating: -30°C To +60°C
  • Max. Pull Tension: 28 lbs (13 kg)
  • Bulk Cable Weight: 25 lbs/1000ft (37 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.384 Revision Date: 07-30-2026
  • Footnote: C - CRATE REEL PUT-UP.
