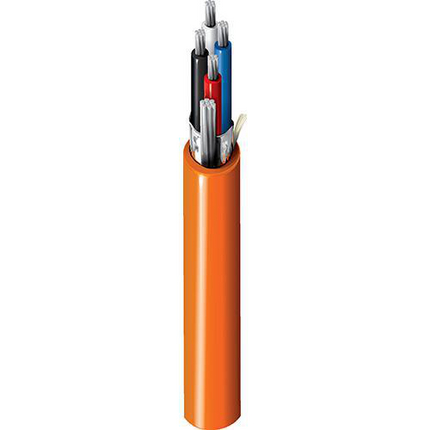

Belden 3078F 003500 Fieldbus, 1 Pr #22 Str TC, FPE Ins, OS, PVC Jkt, Flexible High Speed, CM, PLTC - Orange, 500 ft Reel

$1,816.99
SKU:
3078F 003500
Shipping:
Calculated at Checkout
Color:
Orange
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
3078F
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 3078F 003500 Fieldbus, 1 Pr #22 Str TC, FPE Ins, OS, PVC Jkt, Flexible High Speed, CM, PLTC

Fieldbus, 1 Pair 22AWG (7x30) Tinned Copper, Foam PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, Flexible High Speed, CM, PLTC

Ordering Details

  • Manufacturer Part Number: 3078F 003500
  • Color: Orange
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825140337
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.046 in (1.2 mm); Color Code: Blue & Orange; Notes: HDPE w/ Skin
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.050 in (1.3 mm); Nom. Diameter: 0.351 in (8.92 mm)
  • Overall Cable Diameter (Nominal): 0.351 in (8.92 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 17.1 Ohm/1000ft (56.1 Ohm/km); Nom. Capacitance Cond-to-Shield: 16 pF/ft (52 pF/m); Max. Capacitance Unbalance: 0.46 pF/ft; Nom. Characteristic Impedence: 150 Ohm; Nom. Inductance: 0.3 µH/ft (0.98 µH/m); Nom. Velocity of Prop.: 78%; Max. Current: 2.5 Amps per Conductor
  • Element: Pair(s); Frequency [MHz]: 0.25; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.18
  • Frequency [MHz]: 0.625; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.26
  • Frequency [MHz]: 1.25; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.34
  • Frequency [MHz]: 3.125; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.55
  • UL Voltage Rating: 300 V (CM, PLTC)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -40°C to +75°C
  • Max. Pull Tension: 32 lbs (15 kg)
  • Bulk Cable Weight: 40 lbs/1000ft (60 kg/km)

Standards and Compliance

  • Environmental Suitability: Outdoor, Sunlight Resistance
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, Article 800, CM, PLTC
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: CPE & LSzH Jacket optional

History

  • Update and Revision: Revision Number: 0.523 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 3078F Product Information
