Belden 3076F 003500 Fieldbus, 1 Pr #18 Str TC, PP Ins, OS, PVC Jkt, Flexible SUN RES OIL RES, PLTC-ER, ITC-ER, CMX-Outdoor, CM - Orange, 500 ft Reel

$1,291.99
SKU:
3076F 003500
Shipping:
Calculated at Checkout
Color:
Orange
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
3076F
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 3076F 003500 Fieldbus, 1 Pr #18 Str TC, PP Ins, OS, PVC Jkt, Flexible SUN RES OIL RES, PLTC-ER, ITC-ER, CMX-Outdoor, CM

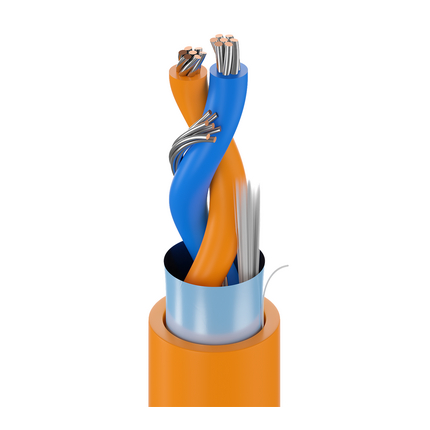

Fieldbus, 1 Pair 18AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, Flexible SUN RES OIL RES, PLTC-ER, ITC-ER, CMX-Outdoor, CM

Ordering Details

  • Manufacturer Part Number: 3076F 003500
  • Color: Orange
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825140245
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Product Overview

  • Suitable Applications: exposure to rodent, crush, or cut through force, harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 7x26; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.088 in (2.2 mm); Color Code: Blue & Orange
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.050 in (1.3 mm); Nom. Diameter: 0.280 in (7.11 mm)
  • Outer Jacket1 Table Notes: Jacket OD +/- 0.010
  • Overall Cable Diameter (Nominal): 0.280 in (7.11 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft; Nom. Capacitance Cond-to-Shield: 45 pF/ft (150 pF/m); Max. Capacitance Unbalance: 1.2 pF/ft; Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.19 µH/ft (0.62 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 5.2 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 8.5 Ohm/1000ft (28 Ohm/km)
  • Element: Pair(s); Frequency [MHz]: 0.039; Nom. Insertion Loss (Attenuation): 0.08 dB/100ft
  • UL Voltage Rating: 300 V (CM, PLTC-ER), 150 V (ITC-ER)

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -40°C to +105°C
  • Stationary Min.: 6.5 in (170 mm); Installation Min.: 2.80 in (71.1 mm)
  • Max. Pull Tension: 60 lbs (27 kg)
  • Bulk Cable Weight: 44 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Oil Resistance, Burial
  • Flammability / Reaction to Fire: UL 1685 UL Loading, FT4, IEEE 1202, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
  • NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC, TC
  • CEC / C(UL) Compliance: CMG
  • ISO/IEC Compliance: IEC 61158-2
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • Other Standard Compliance(s): ISA/SP-50 Type A

Product Notes

  • Notes: Fieldbus: Orange jacket. Profibus PA: Intrinsically Safe Blue jacket. Jacket diameter tolerance: +/- .010

History

  • Update and Revision: Revision Number: 0.536 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.
