Description
Belden 19504 B59250 Portable Cordage, 3 C #16 Str BC, PVC Ins, PVC Jkt, UL Type STOW
Portable Cordage, 3 Conductor 16AWG (65x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type STOW
Ordering Details
- Manufacturer Part Number: 19504 B59250
- Color: Black, Matte
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825127123
- Manufacturer Footnote: C
Supplied as one 250 ft Reel.

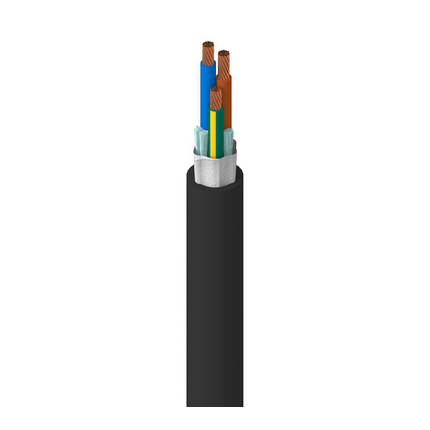

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Portable cordage and cordage
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 16; Stranding: 65x34; Material: BC - Bare Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.033 in (0.84 mm); Nom. Insulation Diameter: 0.123 in (3.12 mm); Color Code: Green/Yellow, Brown, Blue
- Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.07 in (1.8 mm); Nom. Diameter: 0.405 in (10.3 mm)
Electrical Characteristics
- Nom. Conductor DCR: 4.4 Ohm/1000ft; Max. Current: 13 Amps per Conductor at 25ºC (over 50 ft)
- Max. Current: 10 Amps per Conductor at 25ºC (over 50 ft)
- UL Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -35°C To +105 °C
- Stationary Min.: 4.05 in (103 mm); Installation Min.: 4.05 in (103 mm)
- Max. Pull Tension: 105.3 lbs (47.76 kg)
- Bulk Cable Weight: 84 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Outdoor, Oil Resistance
- Flammability / Reaction to Fire: VW-1
- NEC / UL Compliance: Article 400, STOW
- AWM Compliance: STOW
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Approved as water resistant, oil resistant and outdoor use.
History
- Update and Revision: Revision Number: 0.507 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
