Description
Belden 19500 B59250 Portable Cordage, 2 C #18 Str BC, PVC Ins, PVC Jkt, UL Type STOW-A
Portable Cordage, 2 Conductor 18AWG (42x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type STOW-A
Ordering Details
- Manufacturer Part Number: 19500 B59250
- Color: Black, Matte
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825127086
Supplied as one 250 ft Reel.

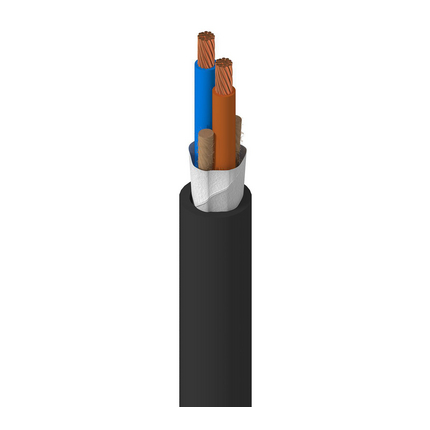

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 18 AWG; Stranding: 42x34; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.110 in (2.79 mm); Color Code: Blue, Brown
- Material: No Shield
- Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.07 in (1.8 mm); Nom. Diameter: 0.36 in
- Overall Cable Diameter (Nominal): 0.36 in
Electrical Characteristics
- Nom. Conductor DCR: 6.97 Ohm/1000ft; Max. Current: 10 Amps per Conductor at 25ºC (7 Amps over 50 ft)
- UL Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 105°C Dry, 60°C Wet; Operating: -35°C To +60°C Wet/105°C Dry
- Stationary Min.: 3.6 in (91 mm); Installation Min.: 3.6 in
- Max. Pull Tension: 41 lbs (19 kg)
- Bulk Cable Weight: 56 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance
- Flammability / Reaction to Fire: VW-1
- NEC / UL Compliance: Article 400, STOW
- AWM Compliance: STOW
- CEC / C(UL) Compliance: LL7874
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Oil Resistant Jacket
History
- Update and Revision: Revision Number: 0.396 Revision Date: 09-07-2025
