Belden 19502 B59250 Portable Cordage, 2 C #14 Str BC, PVC Ins, PVC Jkt, UL Type STOW-A - Black, Matte, 250 ft Reel

$2,360.99
SKU:
19502 B59250
Shipping:
Calculated at Checkout
Color:
Black, Matte
Length:
250 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
19502
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 19502 B59250 Portable Cordage, 2 C #14 Str BC, PVC Ins, PVC Jkt, UL Type STOW-A

Portable Cordage, 2 Conductor 14AWG (41x30) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type STOW-A

Ordering Details

  • Manufacturer Part Number: 19502 B59250
  • Color: Black, Matte
  • Length: 250 ft
  • Put-Up: Reel
  • UPC/EAN: 612825127109
  • Manufacturer Footnote: C

Supplied as one 250 ft Reel.

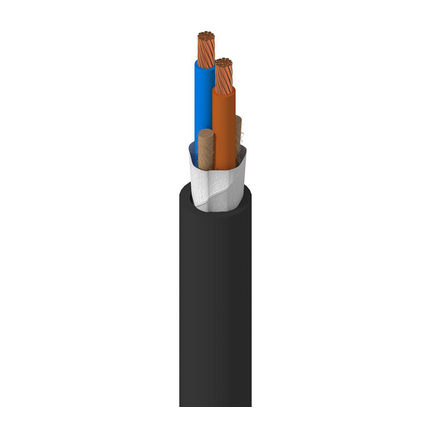

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 14 AWG; Stranding: 41x30; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.049 in (1.2 mm); Nom. Insulation Diameter: 0.173 in (4.39 mm); Color Code: Blue, Brown
  • Material: No Shield
  • Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.089 in (2.3 mm); Nom. Diameter: 0.524 in
  • Overall Cable Diameter (Nominal): 0.524 in

Electrical Characteristics

  • Nom. Conductor DCR: 2.76 Ohm/1000ft; Max. Current: 15 Amps per Conductor at 25ºC (10 Amps over 50 ft)
  • UL Voltage Rating: 600 V

Mechanical Characteristics

  • UL Temperature: 105°C Dry, 60°C Wet; Operating: -35°C To +60°C Wet/105°C Dry
  • Stationary Min.: 5.24 in (133 mm); Installation Min.: 5.24 in
  • Max. Pull Tension: 106.6 lbs (48.35 kg)
  • Bulk Cable Weight: 120 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance
  • Flammability / Reaction to Fire: VW-1
  • NEC / UL Compliance: Article 400, STOW
  • AWM Compliance: STOW
  • CEC / C(UL) Compliance: LL7874
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Oil Resistant Jacket

History

  • Update and Revision: Revision Number: 0.394 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
