Product Overview

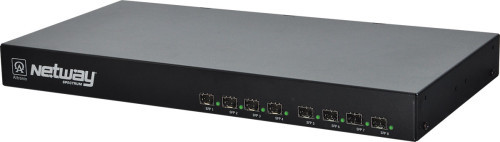

8-Port Media Converter/Repeater
Altronix NetWaySP8A eight (8) port media converter/repeater converts 10/100/1000 Mbps to Fiber (1000Base-X/SX/LX).
Input
115VAC, 60Hz, 0.5A or 230VAC, 50/60Hz, 0.3A.
Fiber Ports
Eight (8) 1Gb SFP ports.
Ethernet
Eight (8) 10/100/1000 Mbps.
Indicators (LED)
Ethernet (RJ45):
Green LED = 1Gbps
Yellow/orange LED = 10/100 Mbps.
Link SFP LED:
Indicates SFP connection.
Temperature
Operating: - 40ºC to 50ºC ( - 40ºF to 122ºF).
Storage: - 40ºC to 85ºC ( - 40º to 185ºF).
Relative Humidity: 85% +/- 5%.
Operating Altitude
- 304.8 to 2,000m (-1,000 to 6,561.679 ft.).
