Product Overview

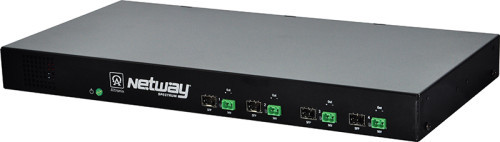

4-port Media Converter with Integral Power Supply/Charger For Composite Fiber (Powered) Cable Application
Altronix NetWaySP4PX Media Converter with Integral Power, provides four (4) 1Gb SFP ports and four (4) ports for up to 120W per port (480W total) to be transmitted over single/multi-mode fiber or composite cable (powered) cable (fiber + copper combined) to NetWay Spectrum PoE Hardened Switches.
Input
Voltage: 115VAC, 60Hz, 5.5A or 230VAC, 50/60Hz, 3A (auto-ranging).
Output
Four (4) power outputs with 480W total power.
120W max per output
IEEE 802.3af, 802.3at and 802.3bt compliant.
Integral surge protection.
SFP Ports:
Four (4) 1Gb SFP ports.
Ethernet
Four (4) 1Gb (RJ45) Ethernet/Data ports.
Wire type: 4-pair CAT5e and higher.
Connectivity: RJ45, auto-crossover.
Speed: 10/100/1000Mbps.
Distance: up to 100m.
Indicators (LED)
Individual Power LEDs for each port.
Individual IP Link status, 10/100 Base-T/active LEDs for each Ethernet port.
Battery Backup
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Temperature
Operating (120W): - 40° C to 50° C ( - 40° F to 122° F).
Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
Operating Altitude: - 304.8 to 2,000m ( - 1,000 to 6,561.679 ft.).
BTU/Hr (approx.): 123 BTU/Hr.
