Product Overview

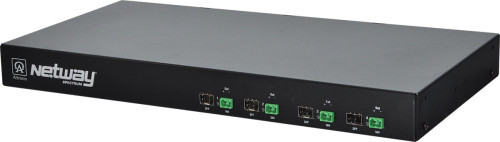

4-port Ethernet over Fiber Media Converter For conventional Fiber or composite Fiber (powered) cable applications
Altronix NetWaySP4 Fiber Optic Transceiver with optional PoE power provides up to four (4) 1Gb SFP ports and four (4) ports for up to 120W per port (240W total power) to be transmitted over composite fiber (powered) cable (fiber + copper combined) to NetWay Spectrum PoE+ Hardened Switches. NetWaySP4 can be used for standard fiber cable applications as well.
Input
Voltage Input option 1: 48-56V: UL Listed ITE power supply, e.g. VertiLine563 (2 x 56V / 150W ports).
Input option 2: PoE+ (30W) or Hi-PoE (60W).
Output
Maximum Power Up to 120W max power per port (240W total power; external power supply required).
30W per port with PoE+ input (midspan) or 60W (Hi-PoE).
Outputs are Class 2 power-limited when powered by PoE, PoE+, Hi-PoE unit or UL Listed power-limited supply.
Fiber Ports
Four (4) 1Gb SFP ports.
Temperature
Operating: (120W): - 40° C to 50° C ( - 40° F to 122° F).
Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
Operating Altitude: - 304.8 to 2,000m ( - 1,000 to 6,561.679 ft.).
