Product Overview

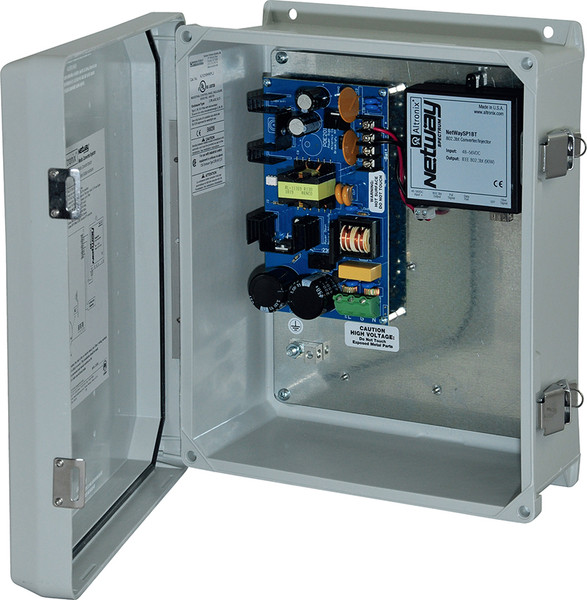

802.3bt Media Converter/Injector with Integral Power. NEMA4/4X rated outdoor enclosure.
Altronix NetWaySP1BTWP Outdoor 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates Fiber (1000Base-X/SX/LX) or structured cable to transmit data. Units can be deployed with structured cable, conventional single/multimode fiber or composite cable (fiber + copper combined). Cameras/edge devices may be located up to 100m from the unit.
Input
115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
Fusing: 5A/250V.
Fiber Port
One (1) 1Gb SFP port.
PoE Port
Single port rated up to 90W max.
IEEE 802.3af, 802.3at and 802.3bt compliant
Data Port
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e.
Distance: up to 100m.
Speed: 10/100/1000 Mbps.
Back-up Battery (batteries not included, stored separately)
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Indicators (LED)
Yellow/Green RJ45 LEDs:
Yellow: 10/100
Green: 10/100/1000
Green PoE LED:
PoE present.
Green SFP (Fiber) LED:
SFP connection.
Features
Auto detection and protection of legacy non-PoE cameras/devices. Lifetime Warranty. Made in U.S.A.
Temperature
Operating Temperature:
60W: -40ºC to 75ºC (-40ºF to 167ºF).
80W: -40ºC to 70ºC (-40ºF to 158ºF).
90W: -40ºC to 60ºC (-40ºF to 140ºF).
Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude
- 304.8 to 2,000m.
