Description

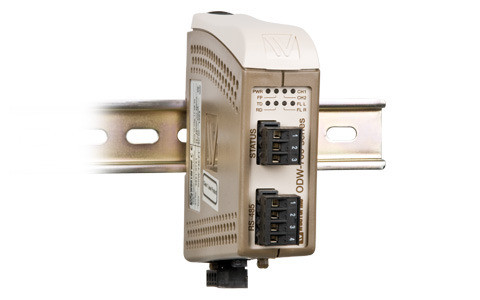

Westermo RS 422/485 Fiber Converter, Multidrop and Redundant Ring <1ms Re Configuration Time, 2 x SFP, Serial Data Up to 1.5 Mbit/s, -40 to +60 deg C, 10-60 VDC. SFPs Sold Separately. (Article #3651-0732).
The ODW-730-F2 has been designed to allow the use of fiber optic cables on RS-422/485 networks. The design allows the use of a range of Westermo verified SFP (Small Form Pluggable) transceivers which can provide solutions with, for example, only a single fiber or distances up to 120 km. Both multidrop networks and redundant rings can be formed using a mixture of transceiver types.
This unit has been designed for industrial use where the requirement is for a long and reliable service life, in a harsh environment. To ensure this reliable operation we manufacture using the highest quality components.
The ODW-730 draws on Westermo’s many years of knowledge of serial protocols and can be used on both synchronous and asynchronous data streams. The switch selectable termination circuit saves the need for external terminating resistors.
Large ring networks can be created to provide network resilience to guarantee system functionality, even if a cable is damaged. The ring recovery time ensures that the network devices are not aware of the failure. The fault contact provides a method to communicate network failures.
