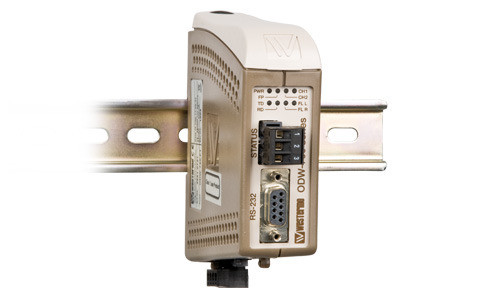

Westermo RS 232 Fiber Converter, Multidrop and Redundant Ring <1ms Re Configuration Time, 2 x SFP, Serial Data Up to 250 Kbit/s, -40 to +60 deg C, 10-60 VDC. SFPs Sold Separately. (Article #3651-0722).
The ODW-720-F2 has been designed to allow the use of fiber optic cables on RS-232 networks. The design allows the use of a range of Westermo verified SFP (Small Form Pluggable) transceivers which can provide solutions with, for example, only a single fiber or distances up to 120 km. Both multidrop networks and redundant rings can be formed using a mixture of transceiver types.
This unit has been designed for industrial use where the requirement is for a long and reliable service life, in a harsh environment. To ensure this reliable operation we manufacture using the highest quality components. The ODW-720 draws on Westermo’s many years of knowledge of serial protocols and can even transmit a second data channel if necessary.
Large ring networks can be created to provide network resilience to guarantee system functionality, even if a cable is damaged. The ring recovery time ensures that the network devices are not aware of the failure. The fault contact provides a method to communicate network failures.
