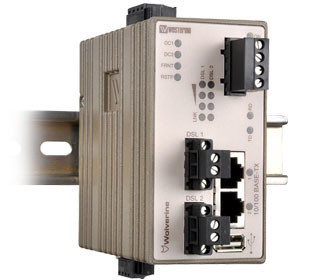

Westermo DDW-242-485 Ethernet Extender

Calculated at Checkout

Westermo SHDSL 2-Port Layer 3 Advanced Industrial Ethernet Extender For Point-To-Point Or Point-To-Multipoint Applications, Up to 15.3 MB (Or 30.4 Mb With Bonded Pair), With Integrated 2-Port Ethernet Switch and RS-422/485 Serial Port, DIN-Rail Mount, 19-60 VDC, -40 to +70 deg C. (Article #3642-0330).

Westermo Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables which can lead to considerable financial savings when installing new systems. The Wolverine DDW-142-485 allows effective Ethernet networks to be created over long distances (up to 15 km (9.3 mi)) at data rates up to 15.3 Mbit/s on a single twisted pair cable. By using two pairs “bonded” this rate can be doubled up to 30.6 Mbit/s. The integral switch allows 2 Ethernet devices to be attached and an RS-422/485 port allows for a legacy piece of equipment to be incorporated into the IP network.

  • Save time and money reusing old cable and equipment
    • Up to 15.3 Mbit/s Ethernet over twisted pair or 30.6 Mbit/s with bonding
    • Advanced WeOS layer 3 functionality
    • Legacy connection via RS-422/485 port
  • Security, legacy resilient networking from WeOS
    • Network IP Security and remote access
    • Port access control and firewall
    • VPN tunnels over SHDSL
  • Easy to Use
    • Basic installation with no configuration needed
    • Web screen for simple configuration and CLI for professional use
    • USB fluid configuration for easy maintenance
  • Robustly designed for mission critical applications
    • 437,000 hours MTBF to MIL- HDBK -217F for extreme reliability
    • Extensive line diagnostics and fault I/O contact and SNMPv3
    • Robust design for vibration, temperature and dual power input
