Product Overview

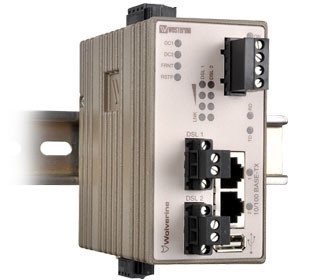

Westermo SHDSL 2-Port Industrial Ethernet Extender For Point-To-Point Or Point-To-Multipoint Applications, Up to 15.3 MB (Or 30.4 Mb With Bonded Pair), With Integrated 2-Port Ethernet Switch and RS-422/485 Serial Port, DIN-Rail Mount, 19-60 VDC, -40 to +70 deg C. (Article #3642-0310).
Westermo Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables which can lead to considerable financial savings when installing new systems. The Wolverine DDW-142-485 allows effective Ethernet networks to be created over long distances (up to 15 km (9.3 mi)) at data rates up to 15.3 Mbit/s on a single twisted pair cable. By using two pairs “bonded” this rate can be doubled up to 30.6 Mbit/s. The integral switch allows 2 Ethernet devices to be attached and an RS-422/485 port allows for a legacy piece of equipment to be incorporated into the IP network.
Features & Benefits
- Save time and money reusing old cable and equipment
- Up to 15.3 Mbit/s Ethernet over twisted pair or 30.6 Mbit/s with bonding
- 2-port 100 Mbit L2 switch supporting VLAN and QoS
- Legacy connection via RS-422/485 port
- Security, legacy resilient networking from WeOS
- Port access control (802.1x) or MAC authentication
- RSTP and multimedia ring solutions
- Modem replacement, serial to IP, Modbus Gateway functions
- Easy to Use
- Basic installation with no configuration needed
- Web screen for simple configuration and CLI for professional use
- USB fluid configuration for easy maintenance
- Robustly designed for mission critical applications
- 435,000 hours MTBF to MIL- HDBK -217F for extreme reliability
- Extensive line diagnostics and fault I/O contact and SNMPv3
- Robust design for vibration, temperature and dual power input
