WAGO 857-810 JUMPFLEX® signal conditioner, temperature, thermocouples of type J, K, configurable

$330.50
SKU:
857-810
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.


Manufacturer Information

Wago orders require a $100 combined minimum order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

The WAGO 857-810 jUMPFLEX® signal conditioner features temperature, thermocouples of type J, K, configurable.

Specifications

  • Configuration options: DIP switch
  • Input signal type: TC sensors
  • Sensor types (TC): Type J; Type K
  • Temperature measurement range (TC): -200 … 1200 °C (Type J); -200 … 1350 °C (Type K)
  • Measurement span (TC) min.: 100 K
  • Cold junction compensation: On/Off (Default: On)
  • Cold junction error: 3 K (typ. 2 K )
  • Output signal type: Current; Voltage
  • Output signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
  • Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
  • Load impedance (voltage output): ≥ 2 kΩ
  • Load impedance (current output): ≤ 600 Ω
  • Step response (typ.): 60 ms (cold junction compensation off); 120 ms (cold junction compensation on)
  • Transmission error (typ.): ≤ 0.1% at max. measurement span (type J, K)
  • Transmission error for the set measurement range: ≤ (150 K/set measurement range [K]) %
  • Temperature coefficient: ≤ 0.04 %/K
  • Power supply type: 24 VDC
  • Nominal supply voltage US: 24 VDC
  • Supply voltage range: ±30 %
  • Current consumption at nominal supply voltage: ≤ 40 mA
  • protection rating: IP20
  • Test voltage (input/output/supply): 2.5 kVAC; 50 Hz; 1 min
  • Connection Data — Connection technology: Push-in CAGE CLAMP®
  • Connection Data — Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Connection Data — Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Connection Data — Strip length: 9 … 10 mm / 0.35 … 0.39 inches
  • Width: 6 mm / 0.236 inches
  • Height: 94 mm / 3.701 inches
  • Depth from upper-edge of DIN-rail: 97.8 mm / 3.85 inches
  • Mounting type: DIN-35 rail
  • Color: light gray
  • Insulation material (main housing): Polyamide (PA66)
  • Flammability class per UL94: V0
  • Weight: 35.5 g
  • Ambient temperature (operation): -25 … +70 °C
  • Ambient temperature (storage): -40 … +85 °C
  • Relative humidity: 5 … 95 % (no condensation permissible)
  • Operating altitude (max.): 2000 m
  • Conformity marking: CE
  • EMC immunity to interference: EN 61000-6-2
  • EMC emission of interference: EN 61000-6-4
  • Standards/specifications: DNV

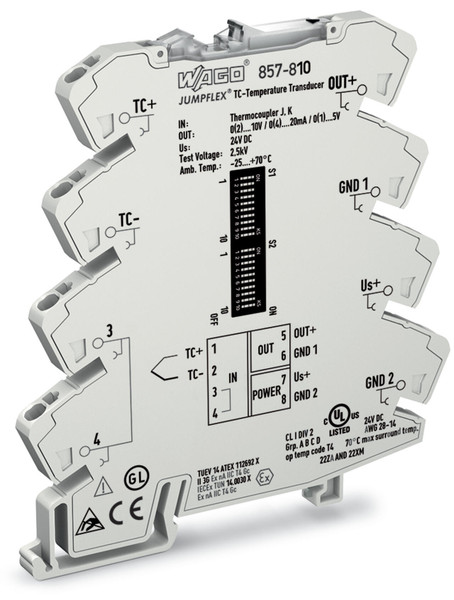

Image shown is representative. Refer to the product specifications for the exact configuration.
