WAGO 787-1650 DC/DC Converter, 24 VDC input voltage, 12 VDC output voltage, 4 A output current, galvanically isolated

$257.60
SKU:
787-1650
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.


Manufacturer Information

Wago orders require a $100 combined minimum order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

The WAGO 787-1650 dC/DC Converter features 24 VDC input voltage, 12 VDC output voltage, 4 A output current, galvanically isolated.

Specifications

  • Nominal input voltage [V]: 24 VDC
  • Input voltage range: 18 … 60 VDC
  • Nominal mains frequency range: 0 Hz
  • Input current Ii: ≤ 2.56 A (24 VDC); ≤ 0.96 A (60 VDC); ≤ 3.39 A (18 VDC)
  • Inrush current: ≤ 60 A (NTC)
  • Mains failure hold-up time: ≥ 5 ms (24 VDC)
  • Nominal output voltage [V]: 12 VDC (SELV)
  • Output voltage range: DC 12 V
  • Default Setting: 12 VDC
  • Nominal output current Io nom: 4 A
  • Nominal output power: 48 W
  • Deviation: ≤ 1 %
  • Residual ripple: ≤ 50 mV (peak-to-peak)
  • Current limitation: 1.1 x Io nom (typ.)
  • Overload behavior: Constant current
  • Signaling: 1 x Status indication LED (green)
  • Operation status indicator: Green LED (Uo)
  • Power loss Pl: ≤ 1 W; ≤ 11.7 W (DCin 24 V / 4 A)
  • Power loss (max.) Pl (max.): 15 W (DCin 18 V / 4 A)
  • Efficiency (typ.): 84 %
  • Internal fuse: T 4 A / 250 VDC
  • Backup fuse (recommended): T 6.3 A
  • Isolation voltage (pri.-sec.): 2.2 kVDC
  • Protection class: III
  • protection rating: IP20; per EN 60529
  • Resistance to reverse feed: ≤ 25 VDC
  • Overvoltage category: II
  • Pollution degree: 2
  • Transient suppression (primary): Varistor
  • Overvoltage protection; secondary: Internal protective circuit; ≤ 35 VDC (in the event of a fault)
  • Short-circuit-protected: Yes
  • Open-circuit-proof: Yes
  • Parallel operation: Yes
  • Series operation: Yes
  • MTBF: > 500,000 h (per IEC 61709)
  • Connection 1 — Connection type: Input/output/signaling
  • Connection 1 — Connection technology: CAGE CLAMP®
  • Connection 1 — WAGO connector: WAGO 721 Series
  • Connection 1 — Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Connection 1 — Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Connection 1 — Strip length: 8 … 9 mm / 0.31 … 0.35 inches
  • Width: 45 mm / 1.772 inches
  • Height: 90 mm / 3.543 inches
  • Depth from upper-edge of DIN-rail: 107.5 mm / 4.232 inches
  • Mounting type: DIN-35 rail
  • Flammability class per UL94: V0
  • Weight: 240 g
  • Ambient temperature (operation): -25 … +70 °C
  • Ambient temperature (storage): -25 … +85 °C
  • Relative humidity: 5 … 96 % (no condensation permissible)
  • Derating: -2 %/K (> 55 °C)
  • Climatic category: 3K3 (per EN 60721)
  • Conformity marking: CE
  • Standards/specifications: EN 61010-1; EN 61010-2-201; EN 61204-3; EN 61558-2-16

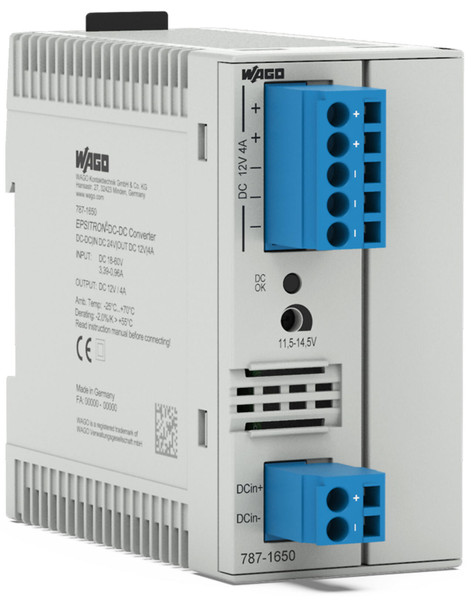

Image shown is representative. Refer to the product specifications for the exact configuration.
