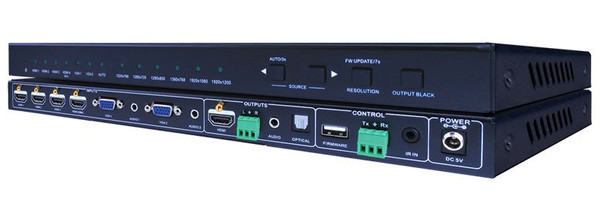

Product Overview
- Compact 6×1 multi-format switcher with 6 video inputs (3 HDMI- 2 VGA- 1 HDMI/MHL)- 2 auxiliary audio inputs mirrored to the VGA inputs- 1 HDMI output and 3 audio outputs (1 dual-mono analog audio- 1 3.5mm stereo audio- 1 optical audio)
- Switches VGA or HDMI/DVI/MHL input signals to HDMI output
- Scales to 6 different resolutions- VGA to HDMI output – Output resolutions selectable to assure preferred output. Supports various output resolutions- such as 1920×1200- 1920×1080- 1360×768- 1280×800- 1024×768- 1280×720
- Bypass HDMI feature provides comprehensive resolution capacities up to 4K & 1080p 3D
- Transmits 4K/UHD @ 30 HZ up to 50 ft. / 15m
- Supports RS232 and IR control
- Supports advanced EDID management
- Supports MHL 2.0- Maximum Resolution 1080p
- MHL auto detection- Supports device charging over MHL- maximum 5V 900mA
- HDCP 1.4 Compliant
- Two input switching modes: auto-switching or manual-switching
- Intuitive indicator for power connect states- source selection- and output resolution selection
- Supports Audio and Video output management via Output Black button
- Features a Type A USB port for Firmware upgrades
- Compact design for easy operation- works in a variety of applications from security monitoring- conference rooms- classrooms- control center and smart homes
- Features off memory for reliable operation – input and output mapping is automatically stored and recalled when the unit is powered on and off and in the event of a power outage
- Supports hot plug
- Dimensions: 13.7” W x 1.1” H x 4.3” D
Package Contents:
EVSW1061 Scaler Switcher
IR Receiver
IR Remote
DC 5V 3A Power Supply
Mounting Hardware
(2) 3-pin Pluggable terminal blocks
Product Manual
Other Information
