Availability and lead times may vary. Request a quote if you need
to confirm availability before placing your order.
Manufacturer Information
Vanco orders are subject to a $150 combined order minimum. Please contact us about possible orders under this amount. Vanco orders over $1500 ship for free.

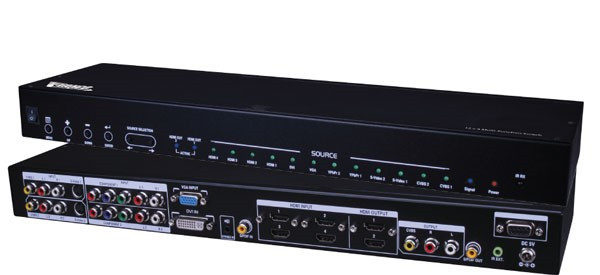

Allows the conversion of up to 12 multi-format inputs to 2 mirroring HDMI outputs and 1 Composite output
Upscales standard definition/high definition sources to resolutions up to 720p or 1080p- with both HDMI outputs working simultaneously along choice of composite output _ some VESA formats can be bypassed by using VGA and DVI-I ports
Buffers- amplifies and equalizes the signal to ensure optimum transmission and reception over the length of the cable run without any loss in video/audio quality
Inputs supported include:
1 x VGA source
2 x S-Video source
2 x Composite AV sources with LR audio
2 x Component sources with LR audio
4 x HDMI sources
1 x DVI-I source
Stereo input for audio
S/PDIF input for digital audio
HDMI Outputs feature bypass from either stereo input or S/PDIF input
Features noise reduction and video enhancements when upscaling to 720p/1080p
DVI-I supports both analog and digital formats with L/R and/or S/PDIF audio input
Detached audio output by L/R and optical
Delivers uncompressed digital video with zero signal loss
Supports high definition resolutions up to 1080p
Dual switching option: IR control with included remote and manual front panel control
IR receiver included for IR extension
Serial port for firmware update
Power Supply: 5V 4A DC- UL Listed
Dimensions: 17.25 inches (438.15mm) W x 1.75 inches (44.45mm) H x 4.75 inches (120.65mm) D
