Product Overview
Features

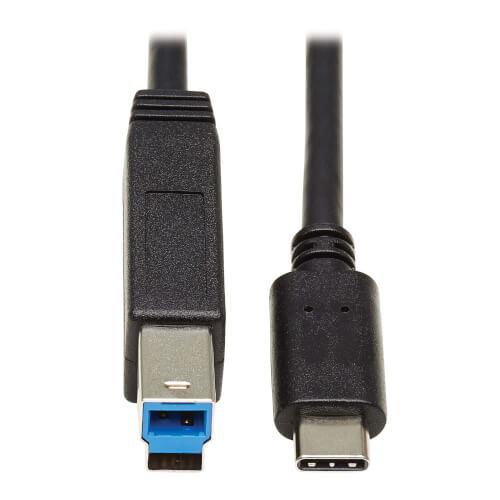

Connects a USB-B Printer, Scanner or External Hard Drive to Your Laptop’s USB-C Port
This USB-C to USB 3.0 Type-B cable allows you to connect a printer, scanner, hard drive, docking station, optical drive or other existing USB-B peripheral to any device with a USB-C or Thunderbolt 3 port, including MacBooks, Ultrabooks and Chromebooks. Its 20-inch length makes it easy to carry in your briefcase or laptop bag for quick downloads and file transfers on the go.
Transfers Data and Charges Devices at Lightning-Fast USB 3.1 Gen 2 Speeds
The USB Type-C to USB 3.0 Type-B cable supports USB 3.1 Gen 2 data transfer rates up to 10 Gbps, which is double the speed of USB 3.1 Gen 1.
Reversible USB-C Connector Attaches in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time.
System Requirements
- Devices with USB-C or Thunderbolt 3 ports
- Devices with USB-B ports
- USB 3.1 Gen 2 compatibility required in both connected devices to achieve USB 3.1 Gen 2 speeds
Package Includes
- U422-20N-G2 USB-C 3.1 Gen 2 to USB 3.0 Type-B Cable (M/M), 20 in.
Specifications
OVERVIEW
| UPC Code | 037332243416 |
| USB Cable Type | Passive |
PHYSICAL
| Material of Construction | PVC |
| Color | Black |
| Cable Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter (OD) | 4.5MM |
| Cable Length (ft.) | 1.7 |
| Cable Length (in.) | 20 |
| Unit Packaging Type | Polybag |
ENVIRONMENTAL
| Operating Temperature Range | 14 to 140 F (-10 to 60 C) |
| Storage Temperature Range | -4 to 185 F (-20 to 85 C) |
| Relative Humidity | 10 to 85% RH, Non-Condensing |
CONNECTIONS
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | USB B (MALE) |
| Connector Plating | Nickel |
| Contact Plating | Gold |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.1 Gen 2 (up to 10 Gbps) |
STANDARDS & COMPLIANCE
| Certifications | Tested to RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
