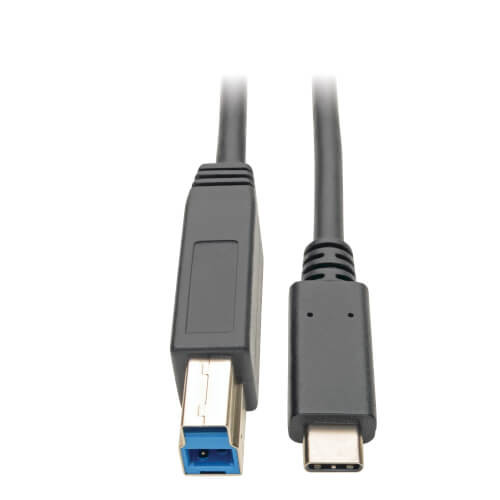

Tripp-Lite U422-006 USB C to USB Type B Cable

MSRP: $16.03
$0.00
(You save $16.03 )
SKU:
U422-006
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

Connects a USB-B Printer, Scanner or External Hard Drive to Your Laptop’s USB-C Port
This six-foot USB-C to USB-B cable allows you to use your printer, scanner, hard drive, docking station or other existing USB-B peripheral with your computer, laptop, tablet, smartphone, MacBook, Ultrabook or Chromebook. It connects between your USB-B device and the USB-C or Thunderbolt 3 port on your mobile device.
Transfers Data and Charges Devices at Fast USB 3.1 Gen 1 Speeds
The USB Type-C to USB Type-B cable supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. The Power Delivery cable also provides power output up to 3 amps (60 watts), which is more than sufficient for charging, syncing and powering compatible devices. The cable is backward compatible with previous USB generations, allowing you to use it with older equipment.
Reversible USB-C Connector Attaches in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time.

System Requirements

  • Device with USB-C or Thunderbolt 3 port
  • Device with USB-B port (USB 3.1 Gen 1 compatibility required to achieve USB 3.1 Gen 1 speeds)

Package Includes

  • U422-006 USB Type-C to USB Type-B Cable, 6 ft.
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332218377
USB Cable Type Passive
PHYSICAL
Material of Construction PVC
Color Black
Cable Jacket Color Black
Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 4.5 mm
Cable Length (ft.) 6
Cable Length (in.) 72
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.08
Unit Packaging Type Polybag
ENVIRONMENTAL
Operating Temperature Range 32 to 113 F (0 to 45 C)
Storage Temperature Range -40 to 158 F (-40 to 70 C)
Operating Humidity Range 10% to 85%, Non-Condensing
Storage Humidity Range 5% to 90%, Non-Condensing
CONNECTIONS
Side A - Connector 1 USB C (MALE)
Side B - Connector 1 USB 3.0 B (MALE)
Connector Plating Nickel
Contact Plating   Gold
FEATURES & SPECIFICATIONS
USB Specification USB 3.1 Gen 1 (up to 5 Gbps)
STANDARDS & COMPLIANCE
Certifications Tested to CE, FCC, RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
