Description
Connects Your USB Type-A Peripherals to Your Computer
- Recommended for use with Tripp Lite’s U325-000-KP-BK, U325-000-KPA-BK and U325-001-KPA-BK USB 3.0 couplers
- Supports data transfer rates up to 5 Gbps
- Bi-directional data interface allows data to flow both directions
- Backward compatible with earlier USB generations
First-Rate Construction for Superior Signal Transfer
- Foil and braid shielding protects against EMI/RFI line noise that can distort or destroy data
- Molded connectors and gold-plated contacts for maximum conductivity and minimum data loss
- Integral strain relief protects cable and connectors from stress and cracking
- Twisted 28/24 AWG data/power lines
- Flexible PVC jacket easy to install in tight spaces
- Computer with USB-A female port
- Peripheral or patch bay with USB-A female port

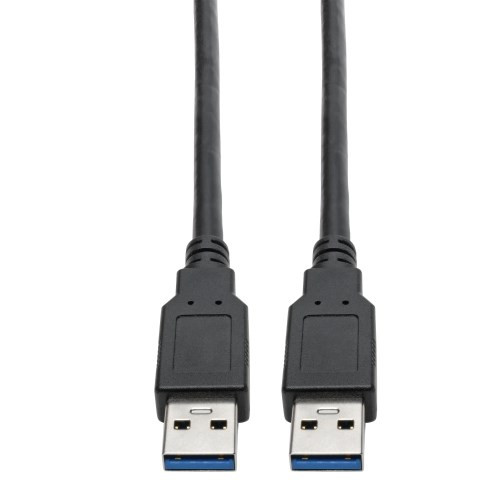

- U325-003 USB 3.0 SuperSpeed A/A Cable (M/M), Black, 3 ft.
OVERVIEW
| UPC Code | 037332205094 |
| USB Cable Type | Passive |
PHYSICAL
| Material of Construction | PVC |
| Color | Black |
| Cable Jacket Color | Black |
| Cable Outer Diameter (OD) | 5.5 |
| Cable Length (ft.) | 3 |
| Cable Length (in.) | 36 |
| Shipping Dimensions (hwd / in.) | 0.50 x 7.00 x 9.00 |
| Shipping Weight (lbs.) | 0.15 |
ENVIRONMENTAL
| Operating Temperature Range | 14 to 140 F (-10 to 60 C) |
| Storage Temperature Range | 5 to 140 F (-15 to 60 C) |
| Relative Humidity | 0% to 90% RH, Non-Condensing |
CONNECTIONS
| Side A - Connector 1 | USB 3.0 A (MALE) |
| Side B - Connector 1 | USB 3.0 A (MALE) |
| Connector Plating | Nickel |
| Contact Plating | Gold |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.0 (up to 5 Gbps) |
STANDARDS & COMPLIANCE
| Certifications | Tested to ROHS |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
