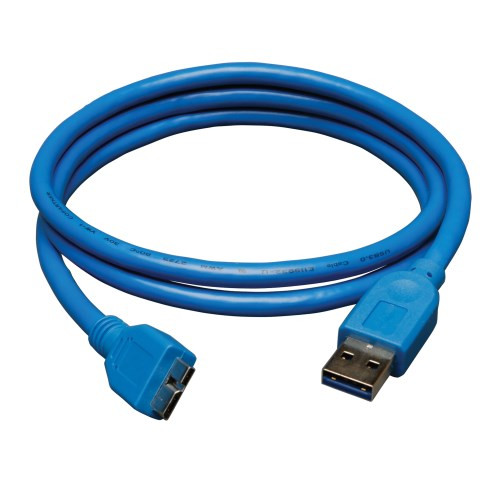

Tripp-Lite U326-003 Tripp Lite 3Ft USB 3.0 SuperSpeed Device Cable

$7.99
SKU:
U326-003
Shipping:
Calculated at Checkout
Product Type:
USB Cables
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Overview

Tripp Lite's 3-ft. (0.91 m), USB-A to Micro-B SuperSpeed USB 3.0 cable brings significant performance enhancements to the ubiquitous USB standard, while remaining compatible with the billions of USB enabled devices currently deployed in the market. SuperSpeed USB will deliver 10x the data transfer rate of Hi-Speed USB, up to 5Gbps, as well as improved power efficiency. USB 3.0 utilizes a bi-directional data interface rather than USB 2.0's half-duplex arrangement, where data can only flow in one direction at a time, giving a ten-fold increase in theoretical bandwidth.

Features

  • 3-ft. (0.91 m) USB 3.0 SuperSpeed A-Male to Micro-B Male
  • SuperSpeed USB is 10 times faster than Hi-Speed USB, with transfer rates up to 5 Gbps.
  • SuperSpeed USB is a Sync-N-Go technology that minimizes user wait-time.
  • SuperSpeed USB will provide Optimized Power Efficiency...No device polling and lower active and idle power requirements.
  • SuperSpeed USB is backwards compatible with USB 2.0. Devices interoperate with USB 2.0 platforms. Hosts support USB 2.0 legacy devices.

System Requirements

  • Computers and Peripherals with USB 3.0 capabilities

Package Includes

  • 3-ft. (0.91 m) USB 3.0 SuperSpeed A-Male to Micro-B Male
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332158123
USB Cable Type Passive
PHYSICAL
Material of Construction PVC
Color Blue
Cable Jacket Color Blue
Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 5.5MM
Cable Length (ft.) 3
Cable Length (in.) 36
Shipping Dimensions (hwd / in.) 7.00 x 9.00 x 0.10
Shipping Weight (lbs.) 0.20
ENVIRONMENTAL
Operating Temperature Range 14 to 140 F (-10 to 60 C)
Storage Temperature Range -4 to 185 F (-20 to 85 C)
Relative Humidity 10% to 85%, Non-Condensing
CONNECTIONS
Side A - Connector 1 USB 3.0 A (MALE)
Side B - Connector 1 USB 3.0 MICRO-B (MALE)
Connector Plating Nickel
Contact Plating   Gold
FEATURES & SPECIFICATIONS
USB Specification USB 3.0 (up to 5 Gbps)
STANDARDS & COMPLIANCE
Certifications Tested to CE, FCC, RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
