Product Overview
Features
Dual USB Wall Charger Charges 2 Mobile Devices Simultaneously
This dual-port USB wall charger with Quick Charge 2.0 technology lets you quickly and safely charge one USB-C mobile device and USB-A mobile device at the same time. Plug into any NEMA 1-15R, NEMA 5-15R or NEMA 5-15/20R outlet to ensure your smartphones, tablets and MP3 players, to name just a few devices, receive a satisfactory battery charge. The dual USB wall charger is compatible with Apple, Android, Windows and Amazon devices with USB-C, Thunderbolt 3 or USB-A charging ports.
USB-C PD Charging Port Supports Quick Charge 2.0 Technology
The USB-C port is PD 2.0 compatible, supporting Quick Charge 2.0 Class A 5/9/12V technology. Instead of charging at a preset power level, this dual-port USB wall charger adapter adjusts to provide as much power as your QC-compliant device’s battery can handle. Available outputs include 5V/3A (15W), 9V/3A (27W) and 15V/2.6A (39W), which can charge your QC 2.0 device much faster than traditional chargers.
Built-In Auto-Sensing Adjusts to Proper Power Level
The USB-A port features auto-sensing technology that detects the connected device and automatically adjusts to the appropriate power level up to 5V 2.4A, perfect for fast-charging tablets and e-readers.
Folding Plug Design Perfectly Sized for Travel
The dual USB travel charger is easy to carry in your purse, suitcase, backpack or laptop bag. The NEMA 1-15P plug folds into the unit when not in use to shield it from damage and prevent it from snagging or scratching your bag’s contents.
Package Includes

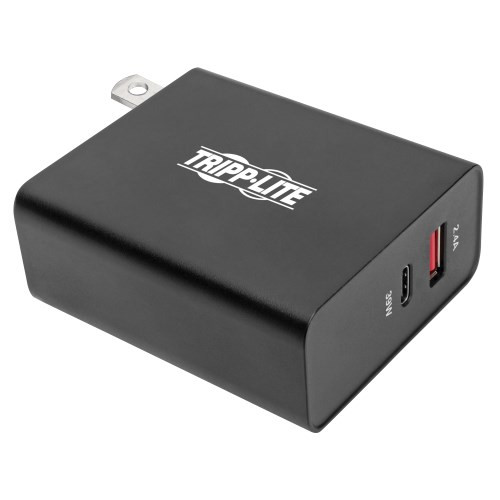

- U280-W02-A1C1 Dual-Port USB Wall Charger with PD Charging
Specifications
OVERVIEW
| UPC Code | 037332214416 |
| Product Type | Wall Charger |
| Charging Form Factor | Direct Plug-In |
| Device Compatibility | Phone; Tablet; Amazon Kindle; Laptop; Chromebook |
INPUT
| Nominal Input Voltage(s) Supported | 120V AC; 230V AC |
| Input Connection Type | NEMA 1-15P |
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| Input Frequency | 50/60Hz |
| Input Plug Type | NEMA 1-15P (NON-POLARIZED) |
| Input Current | 1.5A |
OUTPUT
| Output Capacity | 51W |
| Overload Protection | Yes |
CHARGING
| Number of Charging Ports | 2 |
| Total Charging Amps | 1.5A |
| Total Charging Watts | 51 |
| Charging Method | USB |
| Charging Port Type | USB A (FEMALE); USB C (FEMALE) |
| Charging Ports Details | USB-C: 39W USB-A: 5V 2.5A (12W) |
| Charging Ports / Amps | (1) 2.4A; (1) 3A / 2.6A |
| Charging Method Detail | Power Deliver 2.0; Quick Charge 2.0 |
PHYSICAL
| Material of Construction | Plastic |
| Color | Black |
| Shipping Dimensions (hwd / in.) | 1.46 x 5.51 x 5.35 |
| Shipping Weight (lbs.) | 0.41 |
| Unit Dimensions (hwd / in.) | 2.9 x 2.5 x 1.2 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.30 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 95 F (0 to 35 C) |
| Storage Temperature Range | -4 to 185 F (-20 to 85 C) |
| Operating Humidity Range | 30 TO 90% RH, Non-Condensing |
| Storage Humidity Range | 10 TO 90% RH, Non-Condensing |
CONNECTIONS
| Number of Ports | 2 |
| Side A - Connector 1 | NEMA 1-15P (NON-POLARIZED) |
| Side B - Connector 1 | USB A (FEMALE); USB C (FEMALE) |
FEATURES & SPECIFICATIONS
| Over Current Protection | Yes |
| Driver Required | No |
| Quick Charge Compliant | No |
| Overcurrent Protection | Yes |
| Overvoltage Protection | Yes |
| GaN Technology | No |
STANDARDS & COMPLIANCE
| Certifications | Tested to FCC, RoHS, REACH, UL |
| Approvals | UL Listed - E471186 |
WARRANTY
| Product Warranty Period (Worldwide) | 2-year limited warranty |
