Product Overview
Overview

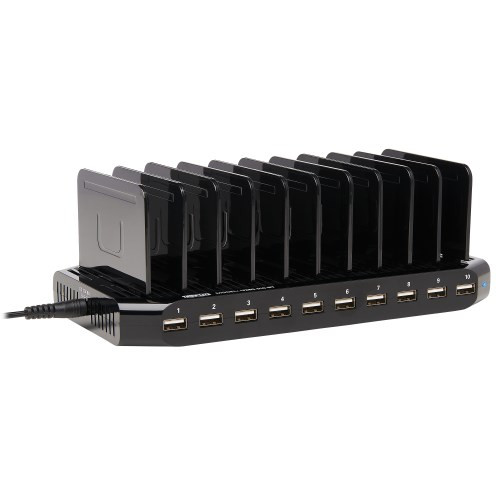

Whether you’re at home or in the office, Tripp Lite’s U280-010-ST 10-Port USB Charging Station provides plenty of ports and power to keep all your devices at 100% capacity. No more peering behind furniture to find an available outlet or unplugging one device to charge another. You can charge up to ten tablets, cell phones, laptops and other devices at the same time. It doesn’t require a computer, so you can take it anywhere AC power is available.
To charge your USB devices, simply plug the included external dual-voltage (100V–240V) power supply into any NEMA 5-15R outlet, and connect your devices to the available USB ports. The charger protects against overheating, overcurrent and overcharging—in fact, it stops charging as soon as your devices’ batteries are at full capacity. A front LED indicates the unit is turned on and receiving AC power.
The U280-010-ST delivers up to 5V, 2.4A to each port (5V/1.92A when fully loaded), which is perfect for charging even battery-intensive devices like the Apple® iPad®. Plus, adjustable brackets on top of the charger allow it to also act as storage, providing space to neatly organize devices while they charge. You can adjust the brackets to accommodate the number and size of the devices being charged.
Features
Charges Up to 10 Devices at the Same Time
- Ideal for charging tablets, cell phones, laptops and other devices at home or work
- Connect devices to unit’s USB ports for proficient charging
- Charges anywhere AC power is available—no computer required
Provides Plenty of Juice for Charging
- Delivers up to 5V, 2.4A per port, enough for charging battery-intensive devices like the Apple iPad*
- Protects against overheating, overcurrent and overcharging
*When fully loaded the output per port becomes 5V/1.92A
Also Functions as Efficient Storage
- Includes 14 adjustable brackets that neatly organize devices while they charge
- Brackets are adjustable to accommodate number and size of devices being charged
Easy to Use
- Included external dual-voltage (100–240V) power supply plugs into any NEMA 5-15R outlet
- Front LED indicates when unit is turned on and receiving AC power
System Requirements
- For international use, the P058-006 (Europe) or P060-006 (UK) power cords can be purchased separately
Package Includes
- 10-Port USB Charging Station
- External Power Supply with C6 Inlet (Input: 100–240V, 50/60 Hz, 2A; Max Output: 12V, 8A, 3 ft.)
- C5 to 5-15P Power Cord
- (14) Storage brackets
- Owner's manual
Specifications
OVERVIEW
| UPC Code | 037332190352 |
| Product Type | Charging Station |
| Charging Form Factor | Charging Hub |
| Device Compatibility | Phone; Tablet; Amazon Kindle |
OUTPUT
| Output Capacity | 96W |
| Overload Protection | Yes |
POWER
| AC Adapter | 100-240V, 50/60Hz, 3A; Output: 12V, 8A, 3-ft. |
| External Power Supply Input Specs (V / Hz / A) | 100-240V, 50/60Hz, 3.0A MAX |
| External Power Supply Output Specs (V / A) | 12V/8A |
| External Power Supply Cord Length (m.) | 1 |
| DC Barrel Plug | OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve |
| Power Consumption (Watts) | 34 |
| External Power Supply Plug(s) | NEMA 5-15P North America |
| Power Consumption Detail | 34W (Operating) 0.27W (Standby) |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Blue (Power) |
CHARGING
| Number of Charging Ports | 10 |
| Total Charging Amps | 19.2A |
| Total Charging Watts | 96 |
| Charging Method | USB |
| Charging Port Type | (10) USB A (FEMALE) |
| Charging Ports Details | USB-A: Up to 5V/2.4A |
| Charging Ports / Amps | (10) 2.4A |
| Charging Method Detail | USB-A: 5V/Max 2.4A Apple Fast Charge |
PHYSICAL
| Material of Construction | Polycarbonate |
| Color | Black |
| Shipping Dimensions (hwd / in.) | 3.11 x 10.59 x 6.14 |
| Shipping Weight (lbs.) | 2.71 |
| Unit Dimensions (hwd / in.) | 1 x 9.4 x 4.7 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.57 |
ENVIRONMENTAL
| Operating Temperature Range | 41 to 95 F (5 to 35 C) |
| Storage Temperature Range | -4 to 122 F (-20 to 50 C) |
| Relative Humidity | 20% to 80% RH, Non-Condensing |
CONNECTIONS
| Number of Ports | 10 |
| Side A - Connector 1 | NEMA 5-15P |
| Side B - Connector 1 | (10) USB A (FEMALE) |
FEATURES & SPECIFICATIONS
| USB Specification | USB 2.0 (up to 480 Mbps) |
| Overcurrent Protection | Yes |
| Overvoltage Protection | Yes |
| GaN Technology | No |
STANDARDS & COMPLIANCE
| Certifications | EN 55022: 2010/AC: 2011, EN 55024: 2010, FCC Class B, RoHS, REACH |
| External Power Supply Certifications | CCC; CE; FCC; GS; PSE; RoHS; TUV; UL; cUL |
WARRANTY
| Product Warranty Period (Worldwide) | 2-year limited warranty |
