Product Overview
Overview

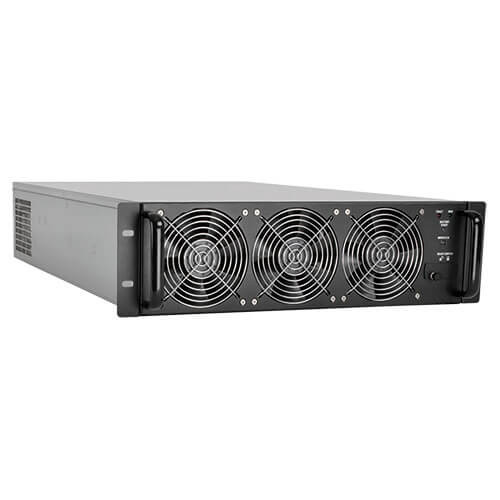

The SV20PM SmartOnline® Hot-Swappable Power Module mounts in your Tripp Lite SV Series UPS system to help you meet the needs of your growing IT infrastructure. Configurable for additional output capacity or N+1 redundancy, the SV20PM is rated at 0.9 power factor for maximum power to the connected load. You can remove or replace the hot-swap module without powering down equipment or hiring technicians, which maximizes uptime, simplifies maintenance and reduces service expenses. It fits into the equivalent of 3U of rack space in your UPS system for exceptional power density.
Compatible with Tripp Lite SV Series models SV20KL, SV40KL, SV60KL, SV80KL, SV100KL, SV120KL, SV140KL7P and SV140KL8P (Large Frame), SV20KM1P1B, SV20KM1P2B, SV20KM1P3B, SV20KM1P4B, SV40KM2P2B, SV40KM2P3B, SV40KM2P4B, SV60KM3P3B, SV60KM3P4B and SV80KM4P4B (Medium Frame), SV20KS1P1B, SV20KS1P2B, SV20KS1P3B, SV40KS2P2B, SV40KS2P3B and SV60KS3P3B (Small Frame).
Features
- Configurable for additional capacity or N+1 redundancy
- Supports hot-swap installation and replacement
- Rated at 0.9 power factor for max power to connected load
- Occupies the equivalent of 3U of rack space in UPS system
Compatible with Tripp Lite SV Series UPS Systems
- Large Frame: SV20KL, SV40KL, SV60KL, SV80KL, SV100KL, SV120KL, SV140KL7P and SV140KL8P
- Medium Frame: SV20KM1P1B, SV20KM1P2B, SV20KM1P3B, SV20KM1P4B, SV40KM2P2B, SV40KM2P3B, SV40KM2P4B, SV60KM3P3B, SV60KM3P4B and SV80KM4P4B
- Small Frame: SV20KS1P1B, SV20KS1P2B, SV20KS1P3B, SV40KS2P2B, SV40KS2P3B and SV60KS3P3B
Package Includes
- SV20PM Hot-Swappable Power Module, 20kVA/18kW
Specifications
OVERVIEW
| UPC Code | 037332203236 |
| Accessory Type | Power Module |
| Accessory Class | UPS Accessories |
INPUT
| Nominal Input Voltage(s) Supported | 120/208V 3-PH Wye; 127/220V 3-PH Wye |
OUTPUT
| Frequency Compatibility | 50 / 60 Hz |
| Output Nominal Voltage | 120/208V 3-PH Wye; 127/220V 3-PH Wye |
PHYSICAL
| Shipping Dimensions (hwd / in.) | 9.84 x 22.83 x 34.25 |
| Shipping Weight (lbs.) | 82.00 |
| Unit Dimensions (hwd / in.) | 5.12 x 19.29 x 28.99 |
| Unit Weight (lbs.) | 74.96 |
WARRANTY
| Product Warranty Period (Worldwide) | 2-year limited warranty |
