Product Overview
Features
Gives Your Compatible Tripp Lite UPS System Extended Runtime

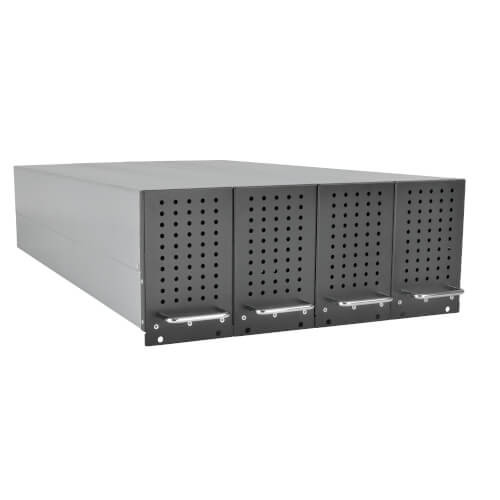

The SVBM is compatible only with Tripp Lite’s SV-Series small- and medium-frame 3-phase UPS systems with an open battery compartment. The 120V DC battery module is a set of four separately packaged battery trays, each with a pre-wired string of 10 internal batteries designed for easy and fast installation inside the compartment. Just slide the battery tray into the open slot and slide the module into the cabinet until the connectors make full contact. Then, secure the tray into place with the included screws.
One-Year Warranty and Environmentally Responsible Design
The SVBM comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
System Requirements
- Tripp Lite SV-Series small- or medium-frame 3-phase UPS system
Package Includes
- Ships as 4 separate packages, each labelled “SVTRAY” (4 SVTRAY = one SVBM)
- Each package includes 10 pre-installed and pre-wired internal batteries
- Installation hardware
- See UPS owner’s manual for installation instructions
Specifications
OVERVIEW
| UPC Code | 037332202567 |
| Accessory Type | Internal Battery Pack |
| Accessory Class | UPS Accessories |
BATTERY
| DC System Voltage (VDC) | +/-120V DC |
| UPS Connection | Each battery tray self-connects to the DC Bus when installed |
PHYSICAL
| Shipping Dimensions (hwd / in.) | 9.84 x 11.61 x 34.25 |
| Shipping Weight (lbs.) | 81.00 |
| Unit Dimensions (hwd / in.) | Each of the 4 included battery trays measures 6.69 x 4.21 x 30.19 |
| Unit Weight (lbs.) | 57.32 |
WARRANTY
| Product Warranty Period (Worldwide) | 1-year limited warranty |
