Description

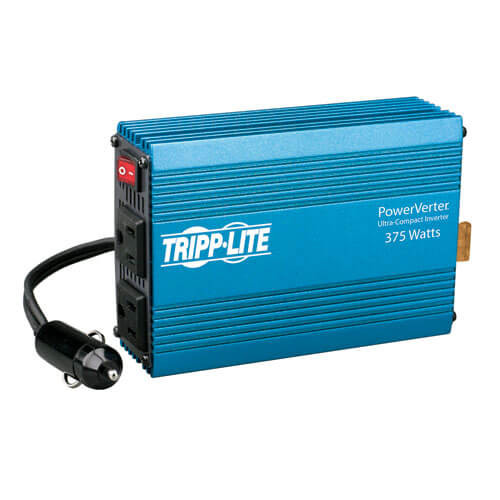

Utilize your vehicle's battery to efficiently power office equipment on the road. Continuously supplies up to 375 watts of 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. Convenient cigarette lighter DC input jack with 3-ft. (0.91 m) cable provides 1-step installation. Portable and compact, the inverter's design is among the most rugged available thanks to its lightweight metal casing.
Allows users to run AC devices from any 12V cigarette lighter socket Converts 12V DC battery power to 120V AC power 375 watts continuous output power; 600 watts peak output power (instantaneous) 2 outlets 3-ft. (0.91 m) cord with cigarette lighter plug Ultra compact, lightweight design with all-metal housing Low battery alarm with auto-shutoff preserves vehicle battery Overload alarm with auto-shutoff prevents wattage overload Replaceable 40amp fuse protects inverter from overload Lighted power switch PV375 Inverter Warranty information Instruction manual INPUT Maximum Input Amps / Watts Full continuous load - 40A at 12V DC, No load - 0.65A at 12V DC Input Connection Type 12V DC cigarette lighter input plug connection Input Cord Length Details 3 ft. hardwire input cable, 16 gauge, 2 wire Voltage Compatibility (VDC) 12
OUTPUT Frequency Compatibility 60 Hz Pure Sine Wave Output No Output (Watts) 375 Nominal Output Voltage(s) Supported 120V Output Receptacles (2) 5-15R Continuous Output Capacity (Watts) 375 Peak Output Capacity (Watts) 600 Output Voltage Regulation Maintains PWM sine wave output voltage of 115 V AC (+/- 8 V AC) Output Frequency Regulation 60 Hz (+/- 3 Hz) Overload Protection 40A automotive input fuse
BATTERY DC System Voltage (VDC) 12
USER INTERFACE, ALERTS & CONTROLS Switches Lighted on/off power switch Audible Alarm Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less.
PHYSICAL Material of Construction Aluminum, Steel Cooling Method Fan Shipping Dimensions (hwd / in.) 2.50 x 5.80 x 7.70 Shipping Weight (lbs.) 2.18 Unit Dimensions (hwd / in.) 2 x 4.25 x 7 Unit Weight (lbs.) 2.3
ENVIRONMENTAL Relative Humidity 0-95% non-condensing
WARRANTY Product Warranty Period (Worldwide) 1-year limited warranty
