Product Overview
Overview

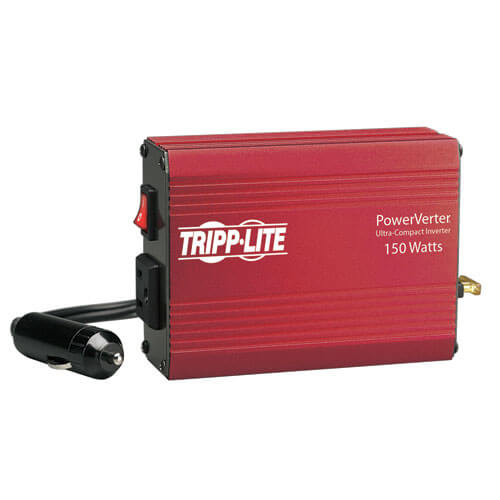

Utilize your vehicle's battery to efficiently power office equipment on the road. Continuously supplies up to 150 watts of 120V AC power to a single AC outlet from any 12V battery or automotive DC source. Convenient cigarette lighter DC input jack with 3-ft. (0.91 m) cable provides 1-step installation. Portable and compact, the inverter's design is among the most rugged available thanks to its lightweight metal casing.
Features
- Allows users to run smaller AC devices from any 12V cigarette lighter socket
- Converts 12V DC battery power to 120V AC power
- 150 watts continuous output; 300 watts peak output power (instantaneous)
- 1 outlet
- 3-ft. (0.91 m) cord with cigarette-lighter plug
- Ultra compact, lightweight design with all-metal housing
- Low battery alarm with auto-shutoff prevents deep battery discharge
- 20-amp fuse protects inverter from overload
- Lighted power switch
Package Includes
- PV150 Inverter
- Warranty information
- Instruction manual
Specifications
OVERVIEW
| UPC Code | 037332117465 |
INPUT
| Maximum Input Amps / Watts | Full continuous load - 14A at 12VDC, No load - 0.4A at 12VDC |
| Input Connection Type | 12VDC cigarette lighter input plug connection |
| Voltage Compatibility (VDC) | 12 |
| Input Cord Length (ft.) | 3 |
OUTPUT
| Frequency Compatibility | 60 Hz |
| Pure Sine Wave Output | No |
| Output (Watts) | 150 |
| Nominal Output Voltage(s) Supported | 120V |
| Output Receptacles | (1) 5-15R |
| Continuous Output Capacity (Watts) | 150 |
| Peak Output Capacity (Watts) | 300 |
| Output Voltage Regulation | Maintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC) |
| Output Frequency Regulation | 60 Hz (+/- 3 Hz) |
| Overload Protection | 20A automotive input fuse |
BATTERY
| DC System Voltage (VDC) | 12 |
USER INTERFACE, ALERTS & CONTROLS
| Switches | Lighted on/off power switch |
| Audible Alarm | Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less. |
PHYSICAL
| Material of Construction | Aluminum, Steel |
| Cooling Method | Convection |
| Shipping Dimensions (hwd / in.) | 6.20 x 2.25 x 6.60 |
| Shipping Weight (lbs.) | 1.30 |
| Unit Dimensions (hwd / in.) | 1.75 x 3.75 x 5.75 |
| Unit Weight (lbs.) | 1.3 |
ENVIRONMENTAL
| Relative Humidity | 0-95% non-condensing |
WARRANTY
| Product Warranty Period (Worldwide) | 1-year limited warranty |
