Product Overview
Features

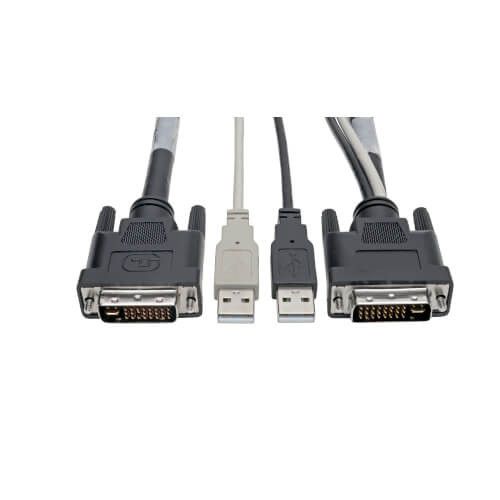

10 ft. Cable Kit with Dual DVI and USB Ports Connect Monitor/Keyboard/Mouse to Your KVM
This KVM cable Kit allows you to connect a DVI monitor and USB keyboard/mouse to your switch's DVI port. Designed as a replacement for the 6-ft. (1.83 m) accessory cable included with Tripp Lite's B021-000-19-HD or B021-000-19-HD2 1U rack-mount consoles, the 10-ft. (3.05 m) P760-010-DVI is ideal for scenarios in which a longer cable is needed. It features two male DVI connectors and two male USB-A connectors, and supports DVI video resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Its slim diameter cuts down on cable clutter around your rack.
Package Includes
- P760-010-DVI DVI to USB-A Dual KVM Cable Kit (2xM/2xM), 10 ft.
Specifications
OVERVIEW
| UPC Code | 037332239488 |
| Accessory Type | Cable Kit |
| Technology | DVI; USB 2.0 (High Speed) |
| Accessory Class | KVM Switch Accessories |
VIDEO
| Max Supported Video Resolution | 1920 x 1200 @ 60 Hz |
PHYSICAL
| Color | Black |
| Cable Jacket Color | Black |
| Cable Length (ft.) | 10 |
| Cable Length (in.) | 120 |
ENVIRONMENTAL
| Operating Temperature Range | 14 ~ 122F (-10 ~ 50C) |
| Storage Temperature Range | 5 ~ 140F (-15 ~ 60C) |
| Relative Humidity | 0 ~ 90% RH, Non-Condensing |
CONNECTIONS
| Side A - Connector 1 | DVI-I DUAL-LINK (MALE) (WIRED TO DVI-D SINGLE-LINK) |
| Side B - Connector 1 | DVI-I DUAL-LINK (MALE) (WIRED TO DVI-D SINGLE-LINK) |
| Side B - Connector 2 | USB A (MALE) |
| Side B - Connector 3 | USB A (MALE) |
FEATURES & SPECIFICATIONS
| USB Specification | USB 2.0 (up to 480 Mbps) |
STANDARDS & COMPLIANCE
| Certifications | Tested to RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
