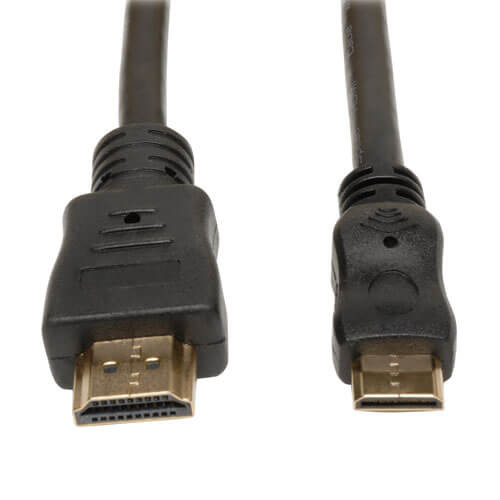

Tripp-Lite P571-010-MINI 10Ft HDMI to Mini HDMI Cable

MSRP: $13.23
$12.99
(You save $0.24 )
SKU:
P571-010-MINI
Shipping:
Calculated at Checkout
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Overview

Tripp Lite's 10-foot HDMI to Mini-HDMI cable allows you to connect digital cameras, camcorders and other digital devices with the Mini-HDMI connector directly to your standard HDMI-enabled TV. This cable offers the same baseline performance as standard high-speed HDMI cables (including 1080p video resolution), plus an additional dedicated data channel, known as the HDMI Ethernet Channel, for device networking. HDMI Ethernet Channel functionality is only available if both linked devices are HDMI Ethernet Channel-enabled. Cable supports not only the Ethernet component, but also 3D and Audio Return Channel.

Features

  • Full 1080p Resolution
  • 24K Gold Connectors
  • HDTV to Digital Camera connection
  • RoHS Compliant

Package Includes

High Speed with Ethernet HDMI to Mini-HDMI Cable, 10 ft.

RoHS compliant

Specifications

OVERVIEW
UPC Code 037332186089
Product Type Passive
Technology HDMI
VIDEO
Max Supported Video Resolution 1920 x 1080 @ 60Hz
Max Supported Color Depth 48-bit Deep Color
HDR Support No
3D Video Supported Yes
Chroma Sub Sampling 4:4:4
EDID Support Yes
Signal Transmission Bidirectional
AUDIO
Audio Specification ARC
PHYSICAL
Color Black
Cable Jacket Color Black
Connector Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 6.0mm
Wire Gauge (AWG) 30
Cable Length (ft.) 10
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.31
ENVIRONMENTAL
Operating Temperature Range 14 to 122 F (-10 to 50 C)
Storage Temperature Range 5 to 140 F (-15 to 60 C)
Operating Humidity Range 0% to 90% RH, Non-Condensing
Storage Humidity Range 0% to 90% RH, Non-Condensing
CONNECTIONS
Side A - Connector 1 MINI HDMI (MALE)
Side B - Connector 1 HDMI (MALE)
Connector Plating Gold
Contact Plating   Gold
Connector Style Straight
FEATURES & SPECIFICATIONS
HDCP Specification 1.4; 2.2
EMI/RFI Line Noise Protection No
Ethernet Support Yes
STANDARDS & COMPLIANCE
Certifications RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
