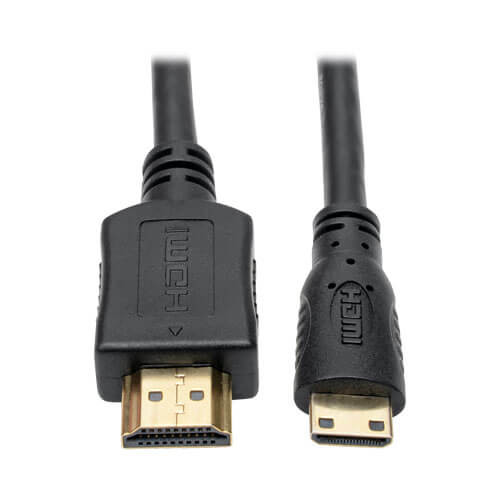

Tripp-Lite P571-001-MINI 1Ft High-Speed HDMI to Mini-HDMI Cable

Tripp-Lite P571-001-MINI 1Ft High-Speed HDMI to Mini-HDMI Cable

MSRP: $8.66
$3.99
(You save $4.67 )
SKU:
P571-001-MINI
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

Connects Mini-HDMI and HDMI Devices

  • Recommended for mobile users who want a cable that can easily pack away in a backpack, laptop bag or camera bag
  • Ideal for connecting a mini-HDMI camcorder, digital camera or tablet to an HDMI display


High Performance and Wide Compatibility

  • Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
  • Supports data transfer speeds up to 10.2 Gbps


Superior Quality Ensures a Flawless Signal

  • 24K gold-plated connectors and contacts for maximum conductivity and minimum data loss
  • Integral strain relief protects cable and connectors from stress and cracking
  • Foil and braid shielding protects against EMI/RFI line noise that can distort or destroy data
  • Flexible PVC jacket easy to install in tight spaces

Package Includes

  • P571-001-MINI High-Speed HDMI to Mini-HDMI Cable (M/M), 1 ft.
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332205728
Product Type Passive
Technology HDMI
VIDEO
Max Supported Video Resolution 1920 x 1080 @ 60Hz
Max Supported Color Depth 48-bit Deep Color
HDR Support No
3D Video Supported Yes
Chroma Sub Sampling 4:4:4
EDID Support Yes
Signal Transmission Bidirectional
AUDIO
Audio Specification ARC
PHYSICAL
Color Black
Cable Jacket Color Black
Connector Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 6.0mm
Wire Gauge (AWG) 30
Cable Length (ft.) 1
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.07
ENVIRONMENTAL
Operating Temperature Range 14 to 122 F (-10 to 50 C)
Storage Temperature Range 5 to 140 F (-15 to 60 C)
Relative Humidity 0% to 90% RH, Non-Condensing
Operating Humidity Range 0% to 90% RH, Non-Condensing
Storage Humidity Range 0% to 90% RH, Non-Condensing
CONNECTIONS
Side A - Connector 1 MINI HDMI (MALE)
Side B - Connector 1 HDMI (MALE)
Connector Plating Gold
Contact Plating   Gold
Connector Style Straight
FEATURES & SPECIFICATIONS
HDCP Specification 1.4; 2.2
EMI/RFI Line Noise Protection No
Ethernet Support Yes
STANDARDS & COMPLIANCE
Certifications RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
