Tripp-Lite P036-003-15A Heavy Duty Power Extension Cord

$13.99
SKU:
P036-003-15A
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

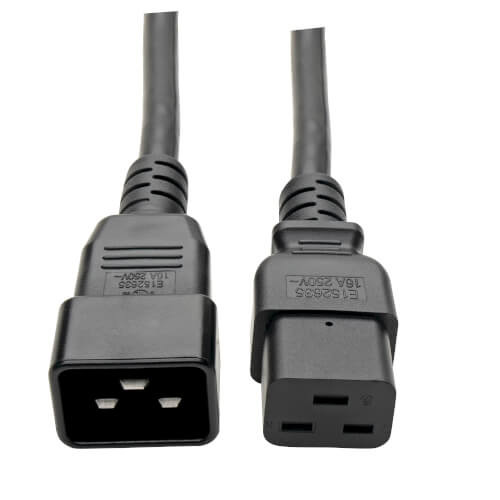

15A C20-to-C19 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty extension cord features 14 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This cord can be used to connect a server, router, network switch or blade server enclosure to a UPS system or PDU or replace or upgrade the standard power cord provided by the device’s manufacturer. The three-foot length helps reduce cable clutter and minimize the risk of tripping.

Package Includes

  • P036-003-15A C19 to C20 Heavy-Duty Extension Cord, 3 ft., Black
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332190925
Device Compatibility Server; Router; Network Switch; UPS; PDU
Country/Region North America
INPUT
Maximum Input Amps 15
Voltage Compatibility (VAC) 250
PHYSICAL
Plug Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 9.3mm
Number of Conductors 3
Wire Gauge (AWG) 14
Cable Length (ft.) 3
Shipping Dimensions (hwd / in.) 12.80 x 8.86 x 0.50
Shipping Weight (lbs.) 0.29
ENVIRONMENTAL
Operating Temperature Range 14 F TO 140 F (-10 C TO 60 C)
Storage Temperature Range 14 F TO 140 F (-10 C TO 60 C)
Operating Humidity Range 35% to 85% RH, Non-Condensing
Storage Humidity Range 35% to 85% RH, Non-Condensing
CONNECTIONS
Side A - Connector 1 IEC-320-C20
Side B - Connector 1 IEC-320-C19
FEATURES & SPECIFICATIONS
High Voltage Yes
Locking Plug No
Angled Plug No
STANDARDS & COMPLIANCE
Certifications UL/cUL
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
