Description
Overview

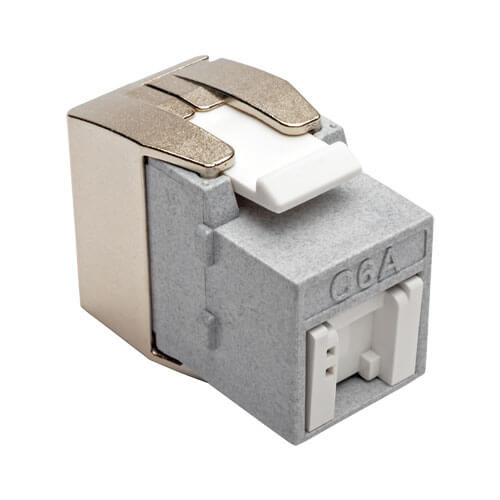

Strengthen your high-speed network with Tripp Lite’s N238-001-GY-TFA Toolless Cat6a Keystone Jack. Terminate your Cat6a wall jack without using a punchdown tool. Just lace the conductors into the stuffer cap, press the 110 connector, and lock the jack into place. Use in standard keystone wallplates, patch panels and surface-mount boxes. RJ45 port is compatible with all Cat6a cables, and toolless punchdown connection is compatible with 22-24AWG Solid wire cabling. Power over Ethernet Plus (PoE+) compliant.
Features
Strengthens Your High-Speed Network
- Ideal for standard keystone wallplates, patch panels and surface-mount boxes
- Lets you terminate your Cat6a wall jack without using a punchdown tool
- Toolless punchdown connection compatible with 22-24AWG Solid Wire cabling
- RJ45 port compatible with all Cat6a cables
- Power over Ethernet Plus (PoE+) compliant, specially designed to prevent spark-gap erosion
Superior Construction for Superior Performance
- UL-listed
- Meets all EIA/TIA Cat6a requirements
- Features a shutter / dust cap that protects from dust and contaminants when not in use
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchasing
Package Includes
- N238-001-GY-TFA Toolless Cat6a Keystone Jack, PoE+ Compliant, Gray
Specifications
OVERVIEW
| UPC Code | 037332189950 |
| Technology | Cat5/5e; Cat6; Cat6a |
PHYSICAL
| Color | Gray |
| Shipping Dimensions (hwd / in.) | 5.00 x 4.00 x 0.50 |
| Shipping Weight (lbs.) | 0.04 |
CONNECTIONS
| Number of Ports | 1 |
| Side A - Connector 1 | RJ45 (FEMALE) |
| Side B - Connector 1 | 110 IDC |
| PoE Type | Type 3 PoE++/UPoE (60W, IEEE 802.3bt) |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
