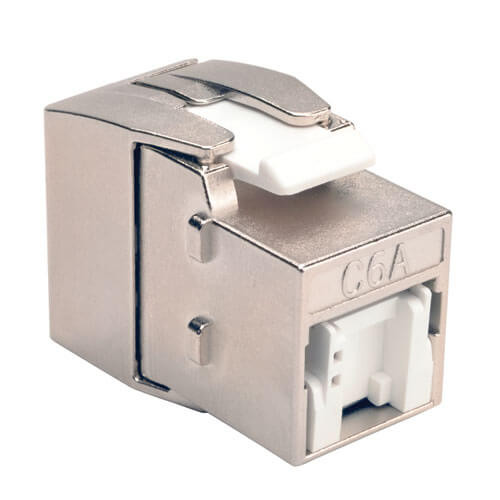

Toolless Keystone Jack Strengthens Your High-Speed Cat5e/Cat6 Network
Terminate your network patch cable without the time, effort and expense of a punchdown tool. Ideal for Cat6 premise wiring, the RJ45 keystone jack snaps into wall plates, patch panels and surface-mount boxes and works with all shielded Cat6 cables. Toolless punchdown connection is compatible with 22–24 AWG solid wire cabling. A shutter/dust cap protects the jack from dust and other contaminants when not in use.
Specifically Designed for Use in Surveillance, VoIP and Other PoE+ Applications
This PoE+ (Power over Ethernet) jack prevents spark-gap erosion that degrades the plug and jack contacts over time and can affect data and/or power transmission capabilities to maximize performance with PoE applications. The N238-001-GY-TF handles the frequent mating and unmating of surveillance cameras, VoIP phone systems, wireless access points and other PoE and PoE+ devices under electrical load.
TAA-Compliant for GSA Schedule Purchases
The N238-001-GY-TF is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Package Includes
- N238-001-GY-TF Keystone Jack Cat6/Cat5e, White, TAA
- Shutter/dust cap
- Quick Start Guide
Specifications
OVERVIEW
| UPC Code | 037332236197 |
| Technology | Cat5/5e; Cat6 |
PHYSICAL
| Color | White |
| Housing Color | White; Gray |
| Shipping Dimensions (hwd / in.) | 5.00 x 4.00 x 5.50 |
| Shipping Weight (lbs.) | 0.02 |
| Unit Dimensions (hwd / in.) | 0.76 x 0.86 x 1.35 |
ENVIRONMENTAL
| Operating Temperature Range | 14 to 140 F (-10 TO 60 C) |
| Storage Temperature Range | -40 to 154 F (-40 TO 68 C) |
| Relative Humidity | 10% to 90% RH, Non-Condensing |
CONNECTIONS
| Number of Ports | 1 |
| Side A - Connector 1 | RJ45 (FEMALE) |
| Side B - Connector 1 | 110 IDC |
| PoE Type | Type 3 PoE++/UPoE (60W, IEEE 802.3bt) |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
