Product Overview
Overview

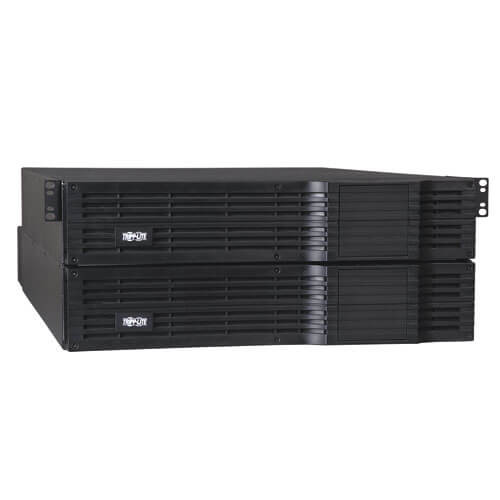

Tripp Lite's BP192V18-4U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite UPS systems. Multi-use form factor supports configuration in rackmount or stacking applications using only 4 rack spaces (4U). Upright tower configuration supported with optional 2-9USTAND accessory. Includes heavy-gauge cabling with high-current DC connectors for simple installation. Additional output connector allows multiple BP192V18-4U battery packs to be daisy-chained to the UPS for even longer extended run operation.
COMPATIBLE UPS SYSTEMS - SU12000RT4U, SU12000RT4UHW, SU16000RT4U, SU16000RT4UHW, and other Tripp Lite UPS systems that specify the use of this battery pack.
Features
- Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
- Supports stacking or rackmount installation using only 4 rack spaces (4U)
- Supports upright tower installation with optional 2-9USTAND accessory (holds 2 battery packs in tower configuration)
- Set of input/output connectors allows multiple BP192V18-4U battery packs to be daisy-chained to the UPS for even longer extended run operation
- Includes heavy-gauge cabling with high-current DC connectors for simple installation
- Simple maintenance chassis contains (4) 40lb. single-user replaceable battery modules
Package Includes
- BP192V18-4U external battery pack
- Mounting Hardware
- Instruction manual with warranty information
Specifications
OVERVIEW
| UPC Code | 037332139269 |
INPUT
| UPS Input Cord Length (ft.) | 1.333 |
| Input Phase | Single-Phase |
OUTPUT
| Overload Protection | 120A DC output fuse system |
BATTERY
| Expandable Battery Runtime | Includes a second input/output connector to daisy-chain multiple BP192V18-4U battery packs |
| Expandable Runtime | Yes |
| DC System Voltage (VDC) | 192 |
| Battery Access | Front-panel battery access |
| Replacement Battery Cartridge | (2x) RBC9-192 |
| Battery Replacement Description | Simple maintenance chassis contains (4) 40lb. single-user replaceable sealed, flame retardant, non-spillable battery modules. |
| UPS Connection | Detachable cable with UPS specific DC connector (40.6 cm length, 4 gauge cable) |
| Typical Battery Lifespan | 4-6 years typical (North America) |
PHYSICAL
| Material of Construction | Steel |
| External Battery Pack Form Factor | Rack/Tower |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND ) |
| Minimum Required Rack Depth (inches) | 35.8 |
| Rack Height | 4U |
| Shipping Dimensions (hwd / in.) | 13.00 x 33.00 x 23.00 |
| Shipping Weight (lbs.) | 284.00 |
| Unit Dimensions (hwd / in.) | 7 x 17.5 x 27.8 |
| Unit Weight (lbs.) | 239 |
WARRANTY
| Product Warranty Period (U.S. & Canada) | 2-year limited warranty |
| Optional Coverage | 3 year, 5 year, next day, on-site warranty coverage available |
